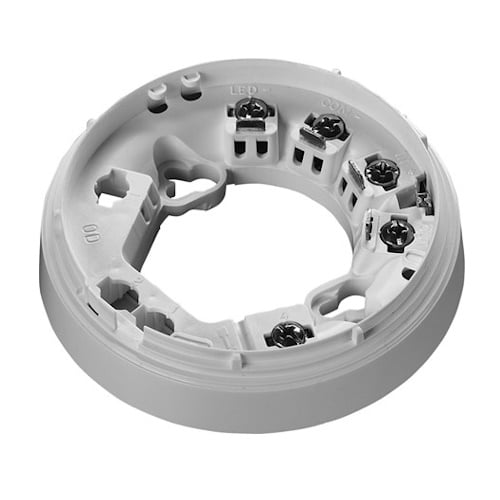

Apollo Orbis TimeSaver Diode Base (Part No. ORB-DB-00003-APO)

The Apollo Orbis TimeSaver Diode Base (ORB-DB-00003-APO) is designed for use with Apollo Orbis fire detection systems that incorporate active end-of-line (EOL) monitoring for detector removal. Based on the standard TimeSaver Base design, the unit incorporates an additional integrated diode, allowing the fire alarm system to monitor detector status while maintaining circuit integrity.

The ORB-DB-00003-APO helps ensure that other devices on the circuit continue operating if a detector is removed without authorisation, supporting reliable system performance and improved fault monitoring. Its installer-friendly design features grouped terminals, a continuity link, and a cable stripping guide, helping to simplify installation and commissioning.

As part of the Apollo Orbis range, the base supports advanced detector technologies designed to improve reliability, simplify maintenance, and reduce false alarms.

Key Features

• TimeSaver diode base for Apollo Orbis detectors
• Integrated diode for active end-of-line monitoring systems
• Grouped terminals for simplified wiring
• Two fixing centres
• LED alignment mark
• Cable stripping guide
• Detector locking mechanism
• Continuity link for voltage testing prior to commissioning
• Supports continued operation of other devices during unauthorised detector removal
• Wide operating voltage range
• Wide operating temperature range
• Compatible with flashing LED detector variants

Typical Applications

The Apollo ORB-DB-00003-APO is suitable for:

• Commercial buildings
• Offices
• Educational facilities
• Hotels
• Healthcare environments
• Retail premises
• Residential developments
• Fire alarm systems using active EOL detector removal monitoring
