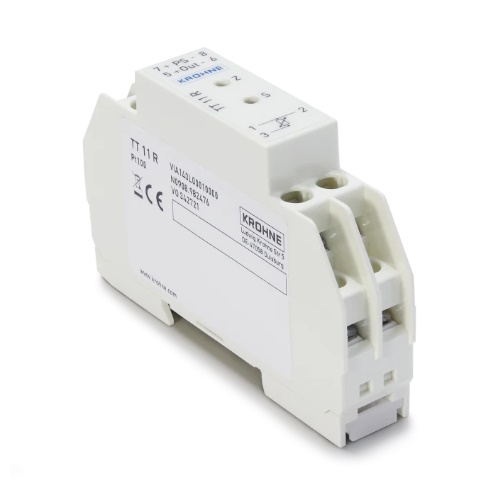

The Krohne OPTITEMP TT 11 R is an adjustable 3-wire rail-mounted temperature transmitter. The transmitter works with Pt100 or Pt1000 RTD elements. It is very reliable and shows excellent performance in building services applications. Due to its voltage output (0…10 VDC), the temperature transmitter is predestined for use in HVAC (Heating, Ventilation, Air Conditioning) systems. The OPTITEMP TT 11 R can be configured using solder pads and allows easy wiring through the large centre hole. Zero point and span adjustment can be done by potentiometers. The RTD transmitter is designed to be mounted on a DIN rail. A dedicated head-mounted version is available with the OPTITEMP TT 11 C.
Features
Cost-effective analogue device
Adjustable with solder pads and potentiometers
On request: configured according to customer’s requirements
With sensor break monitoring
Polarity protected power supply
Designed for installation on a rail (in accordance with DIN EN 60715)
