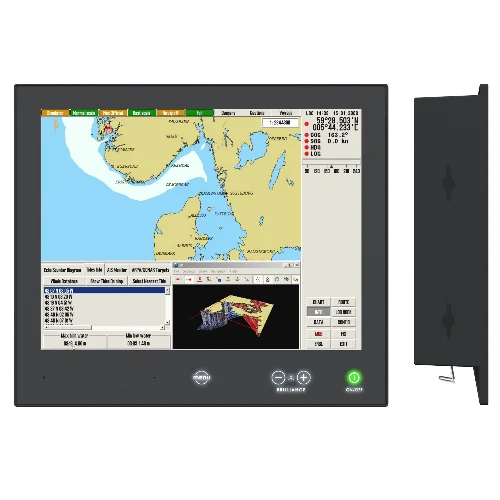

Hatteland HD 15T21 STD Series X G1 LED Display
The Hatteland HD 15T21 STD is a 15inch LED Display in the Hatteland Series X Range
The Hatteland HD 15T21 STD is a 15inch LED Display in the Hatteland Series X Range. The Hatteland HD 15T21 STD is a flexible monitor solution, designed and type approved for the professional maritime segment, where reliability and long life time are key prerequisites for the industry. The HD 15T21 combines a stunning design and technology with innovative features and options.
The HD 15T21 STD is suitable for shipboard applications where simple data input (DVI & VGA) is required. From ship navigation to automation, the HD 15T21 provides a robust and cost effective solution to display and manage data.
The Hatteland HD 15T21 STD features Glass Display Control, LED Backlight Technology, full dimming and multipower as standard, and can also accommodate and combine a number of options such as multi-touch screen and optical bonding.
| Weight | 1 kg |
|---|---|
| TFT Technology | LED Backlight Technology, TFT Active-matrix |
| Viewable Size and Active Area | 15.0 inch – 304.10 x 228.10mm |
| Native Resolution and Pixel Pitch | 1024 x 768 (XGA) – 0.297 (H) x 0.297 (V) mm |
| Aspect Ratio and Response Time | 4:3 – 8ms (Standard typical) |
| Light Intensity and Contrast Ratio | 400 cd/m2 (typ) – 1500:1 (typ) |
| View Angle and Max Colors | 85 deg. (up/down/left/right) (typ) 16.7 million |
| Optimal Resolution and Hz | 1024 x 768 @ 60 Hz |
| Detectable Resolutions | 1024 x 768, 640 x 350, 640 x 480, 720 x 400, 800 x 600 |
| Composite Video Input | None |
| Supported Video Signals | None |
| Product Features | Dimmable 0-100%, Multi-power AC & DC |
| Power Specifications and Consumption | Multi-power 115/230VAC – 50/60Hz + 24VDC TBD W (typ) – 60W (max) |
| User Controls and Activity | Brightness Control (-/+), Buzzer (not visible), Glass Display Control (GDC) IP66, Light Sensor (not visible), Mode Status Indicator (Service), On Screen Display Menu, Power On/Off |
| Connectors | AC Power IN: 1 x Std IEC Inlet, DC Power IN: 1 x 2-pin Terminal Block 5.08, DVI IN: 1 x DVI-D 24P (female), If Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port, SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer, SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer, VGA IN: 1 x HD D-SUB 15P (female) |
| Dimensions | 470.00 x 220.00 x 450.00mm |
| Weight | 6.5kg |
| Factory Options | Optical Bonding Technology, Projected Capacitive Touch Screen (Multitouch, USB interface) |
| Temperature range | -15°C to +55°C |
| Storage Temperature Range | -20°C – +60°C |
| IP Rating | IP66 front – IP22 rear |
| Compass Safe Distance | Standard: 55.00 – Steering: 40.00 cm |
| Model Type | HD 15T21 STD-MA1-FAGA, HD 15T21 STD-MA1-FAGP |
