Pfannenberg – PRO L 10 95-265V AC

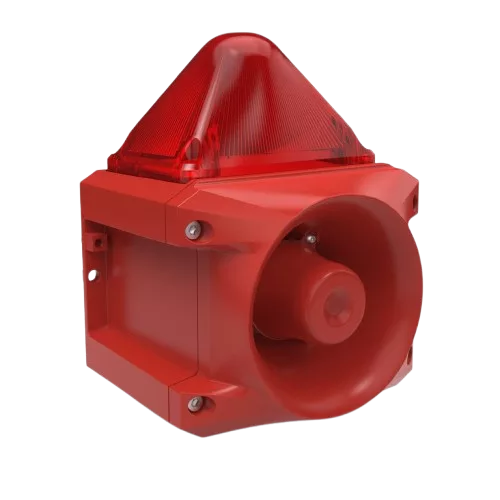

The Pfannenberg PRO L 10 95-265V is a combined audible and visual signalling device designed for harsh industrial, marine, and safety-critical environments.
Pfannenberg PRO PRO L 10 95-265V Sounder-Beacon (95-265 VAC)
The Pfannenberg PRO L 10 95-265V is a combined audible and visual signaling device designed for harsh industrial, marine, and safety critical environments. As part of the Protect Series, it combines a powerful sounder with an integrated beacon within a rugged die cast aluminium housing, providing reliable warning indication in demanding indoor and outdoor applications.
Furthermore, the PRO L 10 is designed to withstand tough operating conditions while delivering excellent acoustic penetration and high visual visibility. Its robust construction, flexible alarm configuration, and multi certification options make it suitable for a wide range of industrial warning and safety applications.
The 95-265 VAC version offers a wide operating voltage range, simplifying installation and reducing inventory requirements by making a single device useable across multiple AC voltage systems.
Key Features
- Combined sounder and beacon
- Operating voltage: 95-265 VAC
- Heavy-duty die-cast aluminium housing
- Suitable for harsh industrial environments
- Available with Xenon or LED beacon technology
- Multiple lens colour options available
- Up to 80 selectable alarm tones
- Three additional externally selectable tones
- Adjustable sound pressure level
- Pre-alarm and main alarm functionality
- Excellent acoustic penetration
- High visual warning effectiveness
- Captive screws and seals for simplified installation
- Multi-voltage operation
- Long service life and low maintenance requirements
- Suitable for indoor and outdoor use
Electrical Specifications
- Rated Voltage: 115 V AC / 230 V AC
- Operating Range: 95 – 265 V AC
- Rated Frequency: 50 Hz / 60 Hz
Certifications
- ISO 9001 – ISO 14001
- Certificate of Hamburg Town
- DNV GL
- UKCA
- UL
- EN 54-3
- EN 54-23
- MED
- CE
- NEMA
- EAC
- VdS
| Max. sound level | 116 dB (A) 1m |
|---|---|
| Volume control | – 4 dB -10 dB -16 dB – 22 dB – 26 dB – 30 dB by DIP switch setting or external control |
| Tones | 80, of which 3 are externally controllable |
| Light source | LED |
| Light intensity | 23 cd (transparent) |
| Duty cycle | 100 % |
| Connecting terminals | 0.14 – 2.5mm² fine stranded / AWG24 – AWG 14 4 mm² solid / AWG12 |
| Protection category | IP 66/67 (EN 60529), Type 4 & 4x |
| Impact strength | IK 08 (EN 50102) |
| Protection class | I |
| Overvoltage category | II |
| Operating temperature | -40 °C…+55 °C |
| Storage temperature | -40 °C…+70 °C |
| Max. rel. air humidity | 90 % |
| Cable inlet | 2x M20 x 1.5 |
| Sealing range of the cable gland | Standard: 3G/3D versions: 6 – 13 mm 7 – 1 |
|---|---|
| Housing material | Aluminum |
| Lens material | PC |
| Installation attitude | any (Sound funnel must not face upwards after assembly of the device) |
| Lens colors | transparent, white, yellow, amber, red, green, blue only PRO L 10: RGBW version: white |
