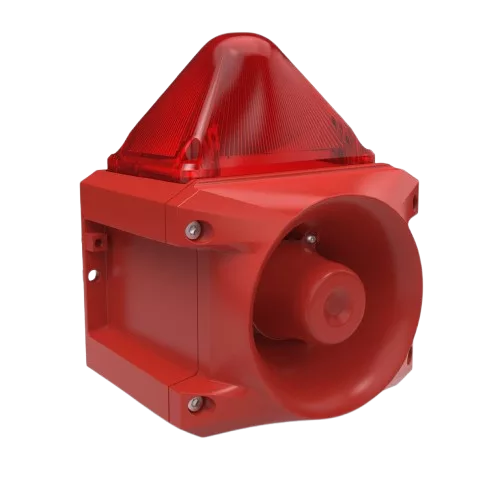

Pfannenberg – PRO L 10 10-60V DC

The Pfannenberg PRO L 10 10-60 is a robust combined sounder and beacon designed for demanding industrial, marine, and safety applications. As part of the Protect Series, it combines powerful audible and visual signalling with exceptional durability, making it ideal for harsh indoor and outdoor environments.

Built around a virtually unbreakable die-cast aluminium housing, the PRO L 10 delivers reliable operation in challenging conditions while providing effective warning signals that can be both heard and seen. The unit is available with either Xenon or LED beacon technology and a choice of lens colours to suit specific signalling requirements.

Furthermore, the PRO L 10 incorporates Pfannenberg’s advanced acoustic design to maximise sound penetration and coverage while reducing the number of signalling devices required across a facility.

Key Features

• Combined sounder and beacon
• Operating voltage: 10-60 VDC
• Heavy-duty die-cast aluminium housing
• Suitable for harsh industrial and outdoor environments
• Available with Xenon or LED beacon
• Multiple lens colour options available
• Up to 80 selectable alarm tones
• Three additional externally selectable tones
• Adjustable sound output
• Pre-alarm and main alarm functionality
• Excellent acoustic penetration
• High visual visibility
• Captive screws and seals for fast installation
• Multi-voltage design reduces stock requirements
• Suitable for audible and visual warning applications
• Complies with industrial signalling requirements
• Designed for long service life and low maintenance

Electrical Specifications

• Rated Voltages: 12 V DC, 24 V DC, and 48 V DC
• Continuous Operating Range: 10–60 V DC
• Max. Sounder Current Consumption: 400 mA @ 24 V DC
• Max. Light Current Consumption: 120 mA @ 24 V DC

Certifications

• ISO 9001 – ISO 14001
• Certificate of Hamburg Town
• DNV GL
• UKCA
• UL
• EN 54-3
• EN 54-23
• MED
• CE
• NEMA
• EAC
• VdS
