Pfannenberg – PA X 5-10 230AC RD
The Pfannenberg PATROL PA X 5-10 230AC RD combines a high-performance sounder and flashing beacon in a single pre-wired unit.

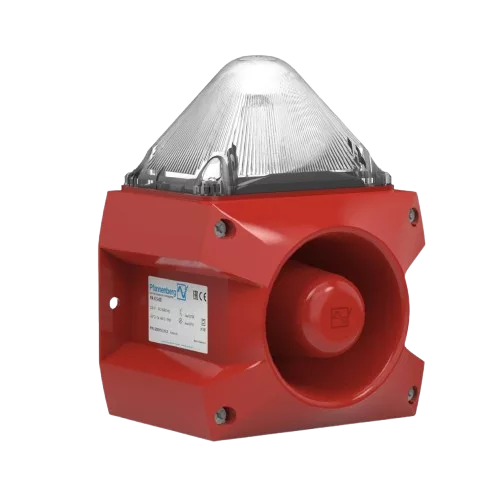

Pfannenberg PATROL PA X 5-10 230AC RD Flashing Sounder
The Pfannenberg PATROL PA X 5-10 230AC RDÂ combines a high-performance sounder and flashing beacon in a single pre-wired unit, providing both audible and visual warning signals for industrial and commercial applications. As part of the innovative PATROL range, it delivers superior coverage, simple installation, and reliable signalling performance in demanding environments.
Furthermore, the PA X 5-10 230AC RDÂ incorporates Pfannenberg’s advanced 3D Coverage technology, ensuring outstanding sound distribution and effective penetration around machinery and acoustic obstacles. As a result, operators can achieve wider warning coverage while reducing the number of signalling devices required.
The unit combines a sounder producing up to 105 dB(A) with an integrated 5 Joule flashing beacon, creating a highly effective warning solution for areas where both visual and audible alarms are required. In addition, the sounder and beacon are supplied pre-wired from the factory, significantly reducing installation time and simplifying commissioning.
Key Features
- Combined sounder and flashing beacon
- Maximum sound output up to 105 dB(A)
- Integrated 5 Joule xenon flashing beacon
- Advanced PATROL 3D Coverage technology
- Excellent acoustic penetration and sound distribution
- Pre-wired sounder and beacon assembly
- Fast and simple installation
- Virtually impossible to install incorrectly
- External tone selection capability
- Impact-resistant housing
- Suitable for indoor and outdoor applications
- Optional connector version available
- Optional SSM monitoring (24 VDC versions)
- NEMA 4 / 4X environmental protection
- UL approved
- Approved by CNBOP-PIB
- EurAsian Conformity (EAC) certified
Visual Coverage
Coverage values vary depending on lens colour and required signalling level:
Red Lens
| Signal Level | Coverage (A × B × C) |
|---|---|
| Indicate | 14 × 22.1 × 25.2 m |
| Warning | 6.2 × 9.8 × 11.2 m |
| Alert | 3.1 × 4.9 × 5.6 m |
Yellow Lens
| Signal Level | Coverage (A × B × C) |
|---|---|
| Indicate | 29.3 × 27.5 × 36 m |
| Warning | 13 × 12.2 × 16 m |
| Alert | 6.5 × 6.1 × 8 m |
Amber Lens
| Signal Level | Coverage (A × B × C) |
|---|---|
| Indicate | 22.5 × 26.1 × 34.2 m |
| Warning | 10 × 11.6 × 15.2 m |
| Alert | 5 × 5.8 × 7.6 m |
Clear Lens
| Signal Level | Coverage (A × B × C) |
|---|---|
| Indicate | 18.5 × 31.5 × 49.5 m |
| Warning | 8.2 × 14 × 22 m |
| Alert | 4.1 × 7 × 11 m |
Electrical Specifications
Available Supply Voltages
- 230 VAC
- 115 VAC
- 24 VDC
Rated Frequency
- 50/60 Hz (AC versions)
Operating Voltage Range
- 230 VAC: 187-255 V
- 115 VAC: 90-135 V
- 24 VDC: 18-30 V
Nominal Current Consumption
- 230 VAC: 65-70 mA
- 115 VAC: 110-130 mA
- 24 VDC: 315-365 mA
Typical Applications
- Industrial facilities
- Manufacturing plants
- Warehouses and logistics centres
- Process industries
- Utility installations
- Infrastructure projects
- Alarm and evacuation systems
- Machine safety applications
