Pfannenberg – PA X 10-10 24 DC RD

The Pfannenberg PATROL PA X 10-10 combines a powerful audible alarm and a high-intensity 10 Joule flashing beacon in a single factory pre-wired unit.

Login to see prices

Add to quote

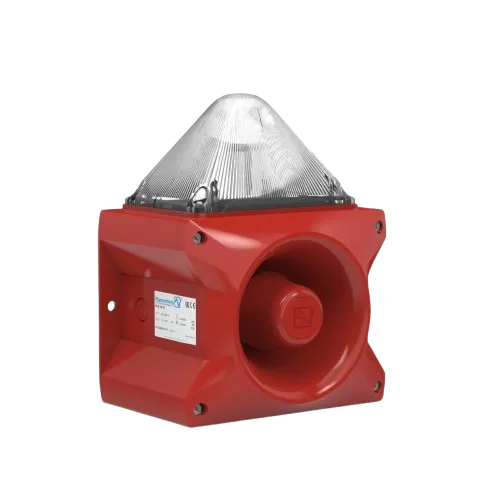

Pfannenberg PATROL PA X 10-10 Flashing Sounder

The Pfannenberg PATROL PA X 10-10 combines a powerful audible alarm and a high-intensity 10 Joule flashing beacon in a single factory pre-wired unit. As part of the innovative PATROL series, it delivers exceptional audible and visual coverage while simplifying installation and reducing the number of signalling devices required.

Featuring Pfannenberg’s advanced 3D Coverage technology, the PA X 10-10 provides outstanding acoustic penetration and wide-area sound distribution, ensuring effective warning coverage in industrial facilities, warehouses, manufacturing plants, and critical infrastructure environments.

Key Features

Combined sounder and flashing beacon
Maximum sound output of up to 117 dB(A)
Integrated 10 Joule xenon beacon
Advanced 3D Coverage technology
Pre-wired sounder and beacon assembly
Fast and simple installation
Excellent acoustic penetration
Impact-resistant housing
External tone selection
Suitable for indoor and outdoor applications
Optional connector version available
UL approved
NEMA 4 / 4X protection
EurAsian Conformity (EAC)

Electrical Specifications

Rated Voltage: 24 VDC
Operating Voltage Range: 18 to 30 VDC
Nominal Current Consumption: 665 to 935 mA @ 24 VDC (10 J version)

Certifications

ISO 9001 – ISO 14001
Certificate of Hamburg Town
DNV GL
UKCA
UL
EN 54-3
EN 54-23
MED
CE
NEMA
EAC
VdS

Visual Coverage (10 Joule)

Red Lens

Indicate: 39.2 × 35.6 × 69.3 m
Warning: 17.4 × 15.8 × 30.8 m
Alert: 8.7 × 7.9 × 15.4 m

Yellow Lens

Indicate: 62.6 × 56.7 × 110.3 m
Warning: 27.8 × 25.2 × 49.0 m
Alert: 13.9 × 12.6 × 24.5 m

Green Lens

Indicate: 48.6 × 44.6 × 86.0 m
Warning: 21.6 × 19.8 × 38.2 m
Alert: 10.8 × 9.9 × 19.1 m

Amber Lens

Indicate: 48.6 × 44.6 × 86.0 m
Warning: 21.6 × 19.8 × 38.2 m
Alert: 10.8 × 9.9 × 19.1 m

Clear Lens

Indicate: 68.0 × 61.7 × 119.7 m
Warning: 30.2 × 27.4 × 53.2 m
Alert: 15.1 × 13.7 × 26.6 m

Sound pressure level	117 dB (A)
Sound pressure level @ DIN-tone	115 dB (A)
Sound level reduction	max. –12 dB via potentiometer
Alarm tones	80 / 4 tones are externally selectable
Flash energy	10 Joule
Flash rate	1 Hz = 60 flashes/min
Light intensity (DIN 5037) 2	149 cd
Max. viewing distance	283 m
Operating temperature	-40 °C…+55 °C
Relative humidity	90 %
Protection system (EN 60529)	IP 66
Protection class	II
Service life of the light source	light emission still 70 % after 8,000,000 flashes
Material	sounder PC / ABS blend similar to RAL 3000 (flame red) / RAL 7035 (light grey)
Cable entry	4x M20 knock-outs prepared (on side), 1 knock-out on back
Integrated seal with cable entry	6–13 mm (feed-through grommet)
Connecting terminals	2.5 mm2 fine wire with cable end sleeve, AWG 16

Downloads for Pfannenberg – PA X 10-10 24 DC RD.

Below you will find all downloads available for the Pfannenberg – PA X 10-10 24 DC RD. If you need any help in finding a file that is not in this list, please do not hesitate to contact us.
