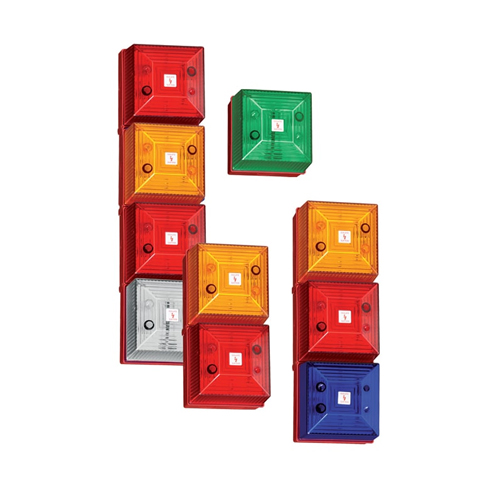

The Clifford & Snell SD40IS is an Intrinsically Safe LED Status Signal.
The Clifford & Snell SD40IS is an Intrinsically Safe LED Status Signal. The SD40IS is designed for use in hazardous environments and provides a steady signal for status indication.
The Clifford & Snell SD40IS must be used in conjunction with an approved Zener Barrier or Galvanic Isolator.
Features
8 LED array flashing or status beacon
High light intensity
Long life LED design
Available in six different colours
Up to 4 modules in any combination of colours
| Applications |
Ex Hazardous Area |
|---|---|
| Beacon Output |
Static/Steady |
| Certification |
ATEX |
| Current Type |
DC |
| Enclosure Color |
Red |
| IP Rating |
IP65 |
| Lens Color |
Amber , Blue , Clear , Green , Opal , Red |
| Light Source |
LED |
| Material |
Fire Retardent PC/ABS |
| Temperature range |
-25°C to +40°C |
| Nominal voltage |
12/24v |
| Power Rating |
Close Proximity Signalling |
| Zones |
Zone 0 , Zone 1 , Zone 2 , Zone 20 , Zone 21 , Zone 22 |
