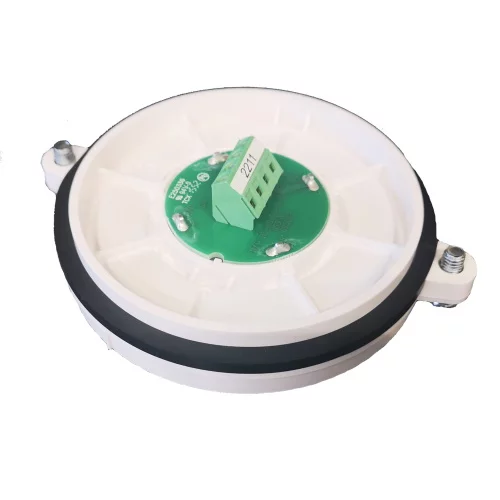

Consilium Salwico NS-ADAPT-IS2 IP55 IS Adapter N1430
Part no.
The Salwico NS-ADAPT-IS2 N1430 is an adapter for IP55 detector bases.
Request a quote
Add this product to your RFQ list. No account needed.
Log in to see pricing and order online
Consilium Salwico NS-ADAPT-IS2 IP55 IS Adapter N1430
The Consilium Salwico NS-ADAPT-IS2 (N1430) enables the safe integration of safe multisensor detectors into Salwico addressable fire alarm systems. Specifically developed for challenging area applications, the adapter maintains needed safety requirements while providing a secure and reliable connection between the detector and the fire alarm system.
Designed exclusively for use with the Consilium Salwico NS-AOHS-IS (N11250) Intrinsically Safe Optical and Heat Multisensor Detector, the NS-ADAPT-IS2 ensures correct detector installation and reliable system performance in safety critical environments.
The adapter also allows the NS-AOHS-IS detector to be mounted directly onto IP55-rated detector bases, keeping up protection against dust and wetness ingress. As a result, it helps maintain reliable fire detection performance in challenging marine, offshore, and industrial applications.
To make commissioning, inspection, and maintenance easier, Consilium equips the adapter with a clearly visible IS identification label. The label confirms well matched with the NS-AOHS-IS detector and displays the relevant ATEX certificate number, making workers able to quickly verify compliance and installation requirements.
Key Features
- Intrinsically safe detector adapter
- Part Number: N1430
- Designed for Salwico addressable fire alarm systems
- Enables installation of the NS-AOHS-IS (N11250) detector on IP55 detector bases
- Suitable for hazardous-area fire detection applications
- Supports intrinsically safe system architecture
- Designed exclusively for use with the NS-AOHS-IS multisensor detector
- Compatible with IP55-protected detector installations
- Clear identification and certification labelling
- Includes ATEX certificate reference on the adapter
- Simple installation and maintenance
Installation Information
- For use only with the Salwico NS-AOHS-IS (N11250) detector
- Designed for installation on IP55 detector bases
- Intended for use within Salwico addressable fire alarm systems
- Side label identifies:
- Approved detector type
- Intrinsically safe application
- ATEX certificate number
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Consilium Salwico NS-ADAPT-IS2 IP55 IS Adapter |
| Part Number | N1430 |
| Device Type | Intrinsically Safe Detector Adapter |
| Compatible Detector | NS-AOHS-IS (N11250) |
| Compatible Bases | NS-2IP55 (46900), 2IP55 (46950) |
| System Compatibility | Salwico CS3000, CS4000, NSAC-1 |
| Ingress Protection | IP55 (when mounted on compatible base) |
| Application | Intrinsically Safe Fire Detection |
| Installation Environment | Marine, Offshore, Industrial, Hazardous Areas |
| Certification Identification | ATEX Reference Label |
