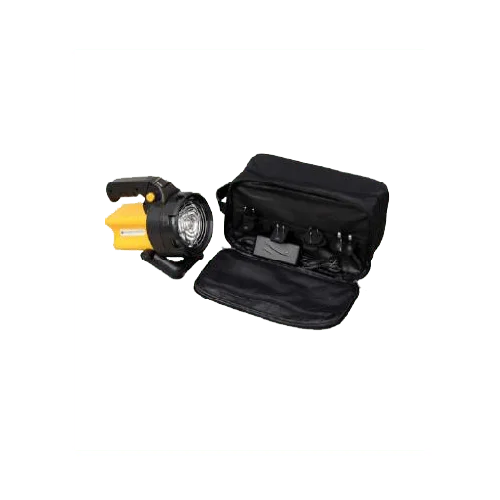

Consilium Salwico UV Flame Detector Test Lamp 001155

The Salwico 001155 UV Test lamp is used to test the functionality of the Salwico UV Flame Detectors. The Salwico UV Test lamp is delivered with rechargeable batteries and a battery charger.

4 in stock (can be backordered)

The Salwico 001155 UV Test lamp is used to test the functionality of the Salwico UV Flame Detectors. The Salwico UV Test lamp is delivered with rechargeable batteries and a battery charger.

Testing:
Ensure the flame detector is switched on, and the alarm outputs are in override before a test is carried out. Turn on the Salwico 001155 Test lamp, point it at the UV detector within range until the detector indicates an alarm with the red LED. Most flame detectors will respond within 30 seconds.

Weight 0.2 kg
IP Rating IP20
Temperature range -15°C to +40°C
Material Plastic
Weight ~2000 g
Test Range Up to 15 meters
Battery Charger 100-240 VAC (Lead Acid battery charger, max 1,3A)
Battery Type 6V 4,5A AGM
Internal Fuse 10A
Lamp UV Source -H3, 6VDC
Operating Range Up to 15 meters
System/Series C300 , C303 , C308 , C316 , CS3000 , CS3004 , CS4000 , NSAC-1 , OEM Extinguish , Salwico Cargo , Salwico CCP , Salwico Cruise , Salwico LNG , Salwico Navy , Salwico Offshore , Salwico Ro/Pax , Salwico Workboat , Salwico Yacht , ServoMaster
SKU: 001155 Categories: , , Tags: ,
