Krohne OPTITEMP TRA-W60 Resistance Sensor
Part no.
The Krohne OPTITEMP TRA-W60 is a plug-in cable sensor (RTD) with oil-tight and vibration resistant design.
Request a quote
Add this product to your RFQ list. No account needed.
Log in to see pricing and order online

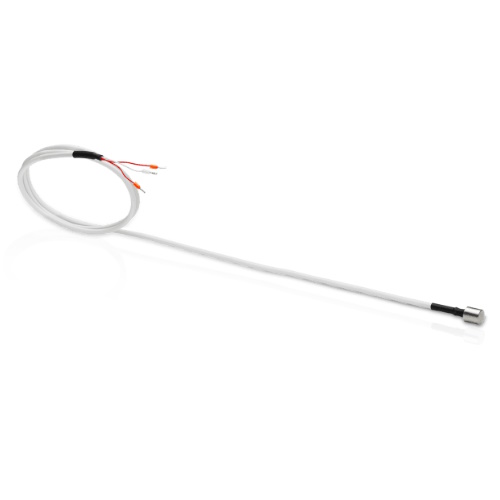

The Krohne OPTITEMP TRA-W60 is a plug-in cable sensor (RTD) with oil-tight and vibration resistant design. It is particularly suitable for measuring bearing temperature. The RTD features a Pt100 or Pt1000 measuring element that is placed in the tip of the stainless steel sensor body filled with heat transfer compound for fast response times. The measuring range of the temperature sensor is -50…+100°C / -58…+300°F. The OPTITEMP TRA-W50 comes with a silicone insulated connecting cable. It can be provided with free insulated flying wires for installation in applications where connection terminals already exist.
Features
Temperature measurement in bearings or similar
Available with flying wires, single and double versions
Sheath material: Stainless steel (1.4404 / 316L)
Tolerance class A according to IEC 60751 as standard
Oil-tight, available with silicone insulated connecting cable
Standard or customised lengths
Different connection heads available (IP54…IP68)
With optional transmitter and display
Downloads for Krohne OPTITEMP TRA-W60 Resistance Sensor.
