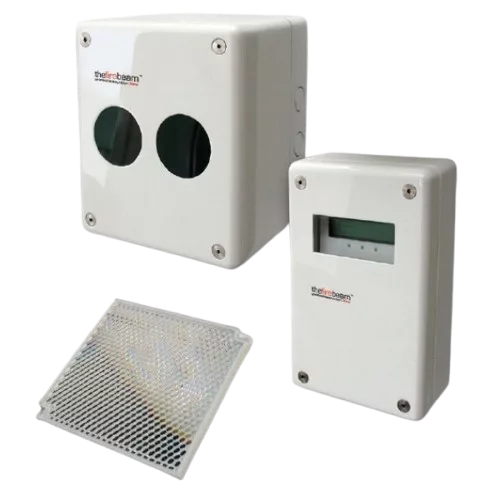

FireBeam Xtra Reflective Beam Detector with Controller and Reflector 7-70m (Part No. FIREBEAM-XTRA)

The FireBeam Xtra (FIREBEAM-XTRA) is an advanced reflective beam smoke detector designed to protect large open spaces and high-ceiling environments. Combining a motorised self-aligning beam head with a ground-level controller, the system simplifies installation, commissioning, and maintenance while delivering reliable long-range smoke detection.

The FIREBEAM-XTRA automatically aligns itself to the centre of the reflector during commissioning and continuously maintains alignment to compensate for normal building movement. This intelligent self-alignment technology helps reduce false alarms and minimises the need for manual adjustment, saving time and maintenance costs throughout the life of the system.

The latest Xtra model features enhanced optics that extend the maximum operating distance to 160 metres, eliminating the need for multiple beam detectors in many long-range applications.

Key Features

• Reflective beam smoke detector
• Motorised self-aligning detector head
• Ground-level controller
• Automatic alignment during commissioning
• Continuous compensation for building movement
• Enhanced optics with detection ranges up to 160m
• Integral alignment and commissioning functions
• Multi-language support
• Adjustable hysteresis settings
• Beam phasing to prevent cross-talk between adjacent beams
• Auto-align on/off functionality
• Adjustable auto-align delay
• Fast commissioning and maintenance
• Conventional beam detector

Typical Applications

The FireBeam Xtra is fitting for:

• Warehouses
• Distribution centres
• Manufacturing facilities
• Churches
• Sports halls
• Exhibition centres
• Aircraft hangars
• Shopping centres
• Atriums
• Large commercial buildings
• High-ceiling environments
