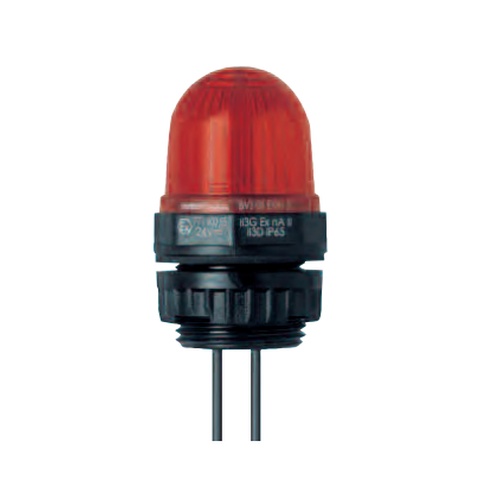

Werma 771EX LED Installation Beacon
The Werma 771 Ex LED Installation Beacon is a permanent Beacon with M22 thread for the control panel programme.
The Werma 771 Ex LED Installation Beacon is a permanent Beacon with M22 thread for the control panel programme. It is suitable for use in Zone 2 and 22 areas, and has an extremely high light intensity.
| Interface | 2 flying leads, approx. 115 mm |
|---|---|
| Fixings | Installation mounting |
| Starting current | Max. 500 mA |
| Color | clear |
| Life duration | Max. 100.000 h |
| Dimensions | 28,7 x 38,5 mm |
| Ingress protection | IP65 |
| Voltage | 24V |
| Voltage type | DC |
| Current consumption | Max. 45 mA |
| Housing | PC |
| Type of signal | LED Permanent |
| Approvals | BVS 05 E 041 U |
