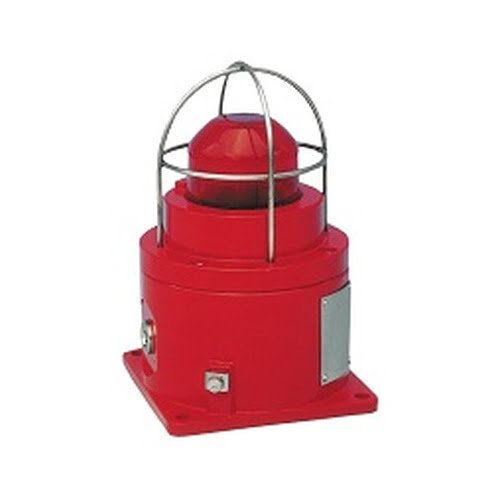

MEDC SM87HXB 5 Joule Xenon Beacon Exd, weather-proof
The MEDC SM87HXB is a weather-proof Beacon which is designed for use in demanding environmental conditions.
The MEDC SM87HXB is a weather-proof Beacon which is designed for use in demanding environmental conditions. The stainless steel and marine grade alloy enclosure is suitable for use onshore and offshore where lightweight Beacons with corrosion resistance and strength are required.
This MEDC Beacon can be painted to customer’s specification and supplied with identification labels.
A LED version available, offering extended lifetimes. A high temperature version of this MEDC Beacon is also available.
Features
Weather-proof
Zone 1 and Zone 2 use
Stainless steel or marine grade alloy
Xenon or LED versions
Various lens colors
Optional lens guard
High temperature version (up to 85°C) available.
| Option | Body & lens color, EOL resistor, flash rate, high temp. version (-40?C to 85?C) available, lens guard, Options, tag or duty labels, tel. & relay initiate |
|---|---|
| Material | Alloy, Stainless Steel |
| Finish | Epoxy paint finish |
| Ingress protection | IP66, IP67 |
| Certified temperature | -55°C to 70°C (Exd) |
| Weight | Alloy – approx. 2kg, Stainless Steel – approx. 3.8kg |
| Area classification | Zone 1, Zone 2 |
| ATEX | ATEX Ex II 2GD, Exd(e) IIC T4 &T6 |
| IECEx | ATEX, CQST, CSA, IECEx, Inmetro, TR CU, UL |
