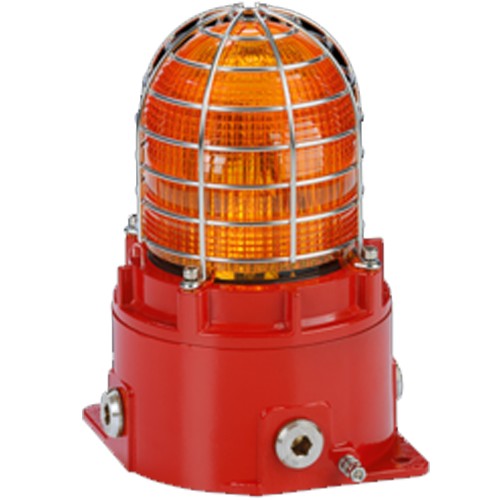

E2S STExB2X15 explosion-proof 15 Joule Xenon Strobe Beacon
The E2S STExB2X15 is an explosion-proof 15 Joule Xenon Strobe Beacon.
The E2S STExB2X15 is an explosion-proof 15 Joule Xenon Strobe Beacon. The robust IP66 corrosion proof 316L stainless steel enclosure ensures this Beacon is suitable for all Zone 1, 2, 21 & 22 hazardous location signalling applications.
The E2S STExB2X15 Beacon produces a high output Xenon flash required for effective signalling in environments with elevated levels of ambient light. The field replaceable color filter enhances the strobe and is constructed from UV stable PC. The stainless steel enclosure features a threaded flame path, four cable entries and a large termination area – all of which significantly reduce installation time.
Features
Robust corrosion proof 316L stainless steel enclosure
Automatic synchronisation on multi-beacon systems
Choice of three flash rates 1Hz, 1.5Hz and double flash
User replaceable Xenon tube mechanically secured against shock & vibration
316 stainless steel guard included as standard
Field replaceable UV stable lens color filter
316 Stainless steel stopping plugs included
4 x M20 cable entries
Stainless steel fasteners
Duplicate cable terminations (in & out for daisy-chain installations).
| Source | Xenon Strobe |
|---|---|
| Energy | 15 Joules (15Ws) |
| Flash rates | 1.3Hz flash (80 fpm), 1.5Hz flash (90 fpm), 1Hz flash (60 fpm), Double flash (120 fpm) |
| Eff. Intensity cd | 666.92 cd – measured ref to I.E.S, 750 cd – calculated from energy (J) |
| Peak Candela | 1,500,000 cd – calculated from energy (J), 114,854 cd – measured ref to I.E.S |
| Lens colours | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltage DC | 24V dc (20-28Vdc), 48Vdc (42-54Vdc) |
| Voltage AC | 115Vac (110-120Vac), 230Vac (220-240Vac) |
| In rush | 753mA within 6ms @ 24Vdc, 1958mA within 4.3ms @ 48Vdc |
| Safety Integrity Level | Product version A: SIL1 and SIL2 Route 2H, Product version S:SIL2 Route 1H with diagnostics SFF: >99%, See install manual for reliability & functional safety data |
| Ingress protection | IP rating per EN60529:IP66/67 |
| Lens material | High impact Borosilicate glass |
| Enclosure material | 316L Stainless Steel |
| Enclosure colour | Red |
| Enclosure finish | Chromate & powder coated finish |
| Cable entries | Side: 4 x M20x1.5mm, Stopping plugs included |
| Measurable gases | Stainless Steel |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG), Duplicated terminals |
| Line monitoring | Blocking diode included, EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor, or diode (DC versions) can be fitted |
| Ground/Earth stud | M5 |
| Installation temp | -50° to +70°C (-58°F to +158°F) |
| Storage temperature | -50° to +70°C (-58°F to +158°F) |
| Relative Humidity | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| MTBF DC | 198.88 years / 1,742,161 hours – MIL 217 |
| MTBF AC | 253.68 years / 2,222,223 hours – MIL 217 |
| Weight | 6.0kg/13.23lbs |
