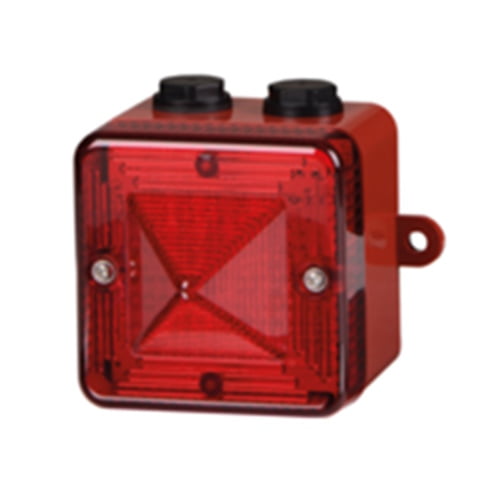

E2S L101X Xenon Beacon
The E2S L101X Beacon is a compact, robust 5 Joule Xenon Strobe Beacon ideal for all general signalling applications such as fire, security and process control.
The E2S L101X Beacon is a compact, robust 5 Joule Xenon Strobe Beacon ideal for all general signalling applications such as fire, security and process control.
CPR compliant, approved to EN54-232010 for use in fire alarm systems, the E2S L101X Beacon also carries GOST approval and cULs approval for general signalling. Featuring an automatically synchronised flash rate of 1Hz (60 flashes per minute) as standard, the DC voltage versions also have user selectable 1.5Hz (90 flashes per minute) and double-strike flash rates.
Features
Back boxes available with and without mounting lugs
Pluggable terminals
In and out terminals
Multiple, user selectable flash rates
User replaceable Xenon tube lamp
Tropicalisation available on request
Can be stacked to create multi-signal units
Can be combined with AlertAlarm & Sonora audible signals.
| Energy | 5 Joules(5Ws) |
|---|---|
| Flash rate | & Double strike, 1Hz (60 fpm), DC units: 1.5Hz (90 fpm) |
| Peak Candela | 86,935 cd* – measured ref. to I.E.S. |
| Eff. Intensity cd | 200 cd* – measured ref. to I.E.S. |
| Lens colours | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Tube life | Emissions may reduce to 70% after 8 million flashes |
| Safety Integrity Level | SIL1 and SIL2 Route 2H IEC61508 (2010) |
| Ingress protection | IP66/IP67 Type 4/4X/13/3R |
| Enclosure material | High impact UL94 V0 & 5VA FR PC |
| Enclosure colour | Red (RAL3000), Grey (RAL7038) & White |
| Lens colour filter | Field replaceable UV stable PC |
| Cable entries | 2 x M20, 1/2″NPT clearance cable entries with blanking plugs |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG) |
| Line monitoring | Diode polarized for use in supervised circuits |
| Operating temperature | -40° to +55°C [-40° to +151°F] |
| Storage temperature | -40 to +70°C [-40° to +158°F] |
| Relative Humidity | 95% at 20°C [68°F] |
| Vibration test | 35Hz for a duration 4Hr (UL1638) |
| Jarring test | 3ft/lb Energy (UL1638) |
| Impact test | 3x 5lb (UL1638) |
| MTBF DC | 234.16 years / 2,051,282 hours – MIL 217 |
| MTBF AC | 265.17 years / 2,322,880 hours – MIL 217 |
| Weight | 0.20kg / 0.44Ibs |
