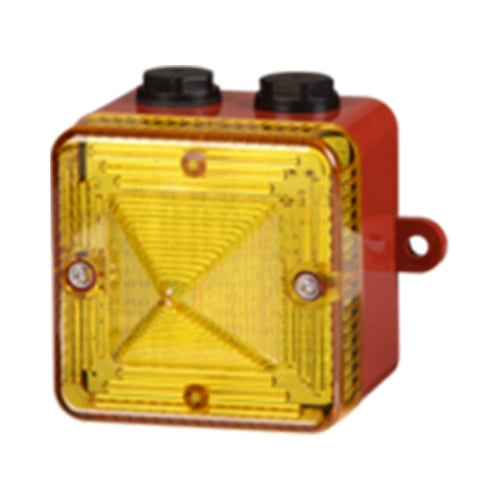

E2S L101H LED Beacon
The E2S L101H is a compact, robust LED array Beacon ideal for all general signalling applications including status indication, security and process control.
The E2S L101H is a compact, robust LED array Beacon ideal for all general signalling applications including status indication, security and process control. Available in cULs approved version for general signalling use. The array of 24 Superflux type high output LED’s generates over 120 candela of light output and can be user set to either steady or flashing mode.
Features
Back boxes available with and without mounting lugs
Tropicalisation available on request
Can be stacked to create multi-signal units
Can be combined with AlertAlarm & Sonora audible signals.
| Light Source | 18 x Cree SMT White LED, High intensity L.E.D. array. |
|---|---|
| Lens colour filter | Field replaceable UV stable PC |
| High Power Steady | 180 cd – measured ref. to I.E.S. |
| LED life | 60,000 hours |
| Cable size | 0.5 to 2.5mm² (20-14 AWG) |
| Lens colours | Amber, Blue, Clear, Green, Magenta, Red, Yellow |
| Safety Integrity Level | SIL1 and SIL2 Route 2H IEC61508 (2010) |
| Ingress protection | IP66/IP67 Type 4/4X/13/3R |
| Enclosure material | High impact UL94 V0 & 5VA FR PC |
| Enclosure colour | Red (RAL3000), Grey (RAL7038) & White |
| Settings | 1. High Power Steady, 2. Blinking – 425ms ON 75ms OFF, 3. 1.0Hz (60 fpm) – 200ms ON 800ms OFF, 4. 1.33Hz (80fpm) – 150ms ON 600ms OFF, 5. Double Flash, 6. Triple Flash, 7. 2.0Hz (120fpm) – 125ms ON 375ms OFF, 8. Temporal Pattern Flash |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG) |
| Cable entries | 2 x M20, 1/2″NPT clearance cable entries with blanking plugs |
| Line monitoring | Diode polarized for use in supervised circuits |
| Operating temperature | -40 to +70°C [-40° to +158°F] |
| Storage temperature | -40 to +70°C [-40° to +158°F] |
| Relative Humidity | 95% at 20°C [68°F] |
| Vibration test | 35Hz for a duration 4Hr (UL1638) |
| Jarring test | 3ft/lb Energy (UL1638) |
| Impact test | 3x 5lb (UL1638) |
| MTBF DC | 228.08 years / 1,998,002 hours – MIL 217 |
| MTBF AC | 164.73 years / 1,443,001 hours – MIL 217 |
| Weight | 0.20kg / 0.44Ibs |
