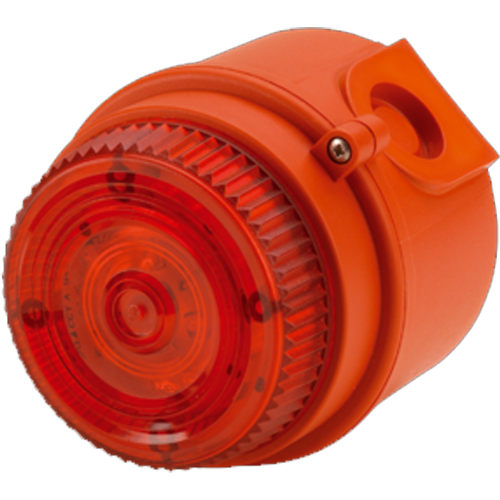

E2S IS-mB1 IS-minialite Beacon
The E2S IS-mB1 is a compact Beacon with an array of six high output L.E.D’s.
The E2S IS-mB1 is a compact Beacon with an array of six high output L.E.D’s. Approvals include ATEX, IECEx and GOST-R for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications.
The E2S IS-mB1 is suitable for all intrinsically safe signalling applications such as fire, security and process control.
Features
Input overload and reverse current protection
End of line resistor certified
Prismatic lens optimizes L.E.D effectiveness.
| Light Source | Array of 6 high intensity L.E.D’s. |
|---|---|
| L.E.D. colours | Red, Amber, Blue, Green & Clear |
| Flash modes | Double flash at 2Hz and 1Hz |
| Eff. Intensity cd | 23cd* – measured ref. to I.E.S. |
| Voltage | 16-28vdc via Zener barrier or galvanic isolator |
| Current | 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier |
| Ingress protection | IP65 |
| Rating | Continuous |
| Enclosure material | UL94V0 & 5VA FR ABS & PC |
| Enclosure colour | RAL3000 Red |
| Fixings | Stainless Steel |
| Cable entries | 2 x M20 clearance gland knockouts. Custom configurations also available. |
| MTBF | 294.6 years / 2,580,645 hours – MIL 217 |
| Terminals | 0.5 to 2.5mm2 |
| Operating temperature | -40° to +60°C [-40 to +140°F] |
| Storage temperature | -40° to +70°C [-40 to +158°F] |
| Relative Humidity | 90% at 20°C [68°F] |
| Weight | 0.32Kg / 0.71Ibs |
