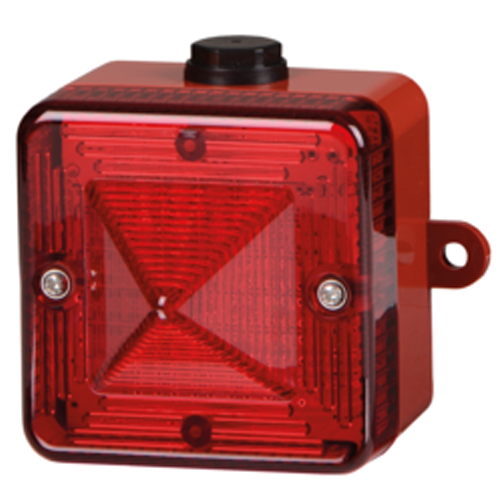

E2S IS-L101L LED Beacon
The E2S IS-L101L unit is an intrinsically safe field mounting Beacon which provides a bright flashing warning signal.
The E2S IS-L101L unit is an intrinsically safe field mounting Beacon which provides a bright flashing warning signal.
The unit can be used independently or combined with an IS-A105N 49 Alarm Sounder. Combination Units can utilise a common zener barrier or galvanic isolator and may be coupled together or mounted separately. With the IS-A105N the alarm accept function can be utilised. By closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again.
Features
Input overload and reverse current protection
Prismatic lens optimizes LED effectiveness.
| Light Source | Array of 6 high intensity L.E.D’s. |
|---|---|
| L.E.D. colours | Note:Blue, Green & White LED versions utilise a Clear lens, Red, Amber, Blue, Green & White |
| Standalone mode | 2Hz (2 double flashes per second) |
| Eff. Intensity cd | 48cd* – measured ref. to I.E.S. |
| Voltage | 16-28vdc via Zener barrier or galvanic isolator |
| Current | Stand alone: 25mA typical, With IS-A105N: 35mA typical |
| Ingress protection | IP66 |
| Rating | Continuous |
| Enclosure material | UL94V0 & 5VA FR ABS & PC |
| Enclosure colour | RAL3000 Red or Grey RAL7038 |
| Fixings | Stainless Steel |
| Cable entries | 2 x M20 clearance, supplied with stopping plugs |
| Terminals | 0.5 to 2.5mm2 |
| Operating temperature | -40° to +60°C [-40 to +140°F] |
| Storage temperature | -40° to +70°C [-40 to +158°F] |
| Relative Humidity | 95% at 20°C [68°F] |
| Weight | 0.40Kg/0.88Ibs |
