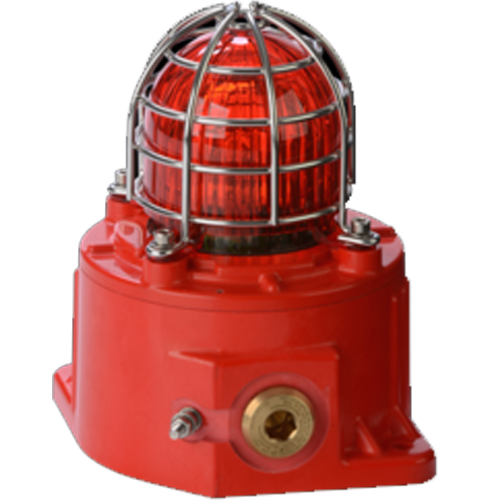

E2S GNExB1X05 Xenon Strobe Beacon
The E2S GNExB1X05 is an IECEx & ATEX approved explosion-proof 5 Joule Xenon Strobe Beacon.
The E2S GNExB1X05 is an IECEx & ATEX approved explosion-proof 5 Joule Xenon Strobe Beacon. The robust IP66 corrosion proof GRP enclosure and extended temperature range ensures this Beacon is suitable for all Zone 1, 2, 21 & 22 hazardous location signalling applications.
The E2S GNExB1X05 Beacon produces over 117 cd effective – a high output Xenon strobe flash required for safety signalling. The field replaceable color filter enhances the strobe and is constructed from UV stable PC. The GRP enclosure features a threaded flame path, dual cable entries and a large termination area – all of which significantly reduce installation time.
Features
Robust, corrosion proof GRP (glass reinforced polyester) enclosure
Automatic synchronisation on multi-beacon systems
DC voltage versions feature a choice of three flash rates
DC voltage units feature remote initiation of flash rate
User replaceable Xenon tube mechanically secured against shock & vibration
Glass lens & stainless steel guard
UV stable PC field replaceable lens color filter
Stainless steel fixings
Dual cable entries
Duplicate cable terminations (in & out for daisy-chain installations).
| Energy | 5 Joules (5Ws) |
|---|---|
| Flash rate | AC voltages:1Hz (60fpm), DC voltages: 1Hz (60fpm), 1.5Hz (90fpm) & double flash |
| Peak Candela | 45,449 cd – measured ref to I.E.S, 500,000 cd – calculated from energy (J) |
| Eff. Intensity cd | 117.93 cd – measured ref to I.E.S, 500,000 cd – calculated from energy (J) |
| Lens colours | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltage DC | 12Vdc; 24vdc; 48Vdc |
| Voltage AC | 115Vac; 230Vac |
| Safety Integrity Level | SIL1 and SIL2 Route 2H IEC61508 (2010) |
| Ingress protection | IP66/67 |
| Enclosure material | UV stable GRP (glass reinforced polyester) |
| Color | Natural Red – can be provided in alternative colours |
| Cable entries | 2 x M20 ISO (1 stopping plug inc.), Adaptors to M25, 1/2″ & 3/4″ NPT can be specified |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG) |
| Line monitoring | Blocking diode included, EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor, or diode (DC versions) can be fitted |
| Tube life | Emissions reduced to 70% after 5 million flashes |
| Temperature range | -50° to +70°C (-58°F to +158°F) |
| Relative Humidity | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight | 1.5kg/3.3lbs |
