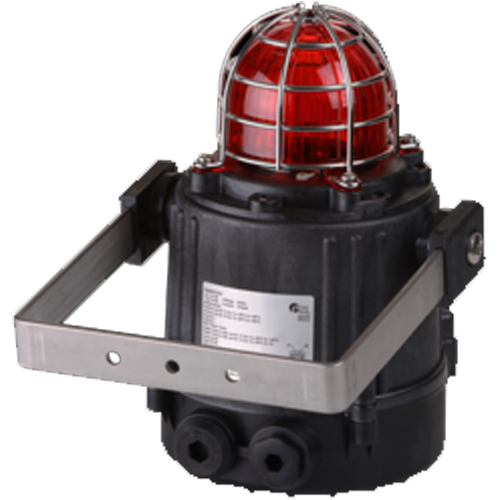

E2S E2xB05 Xenon Strobe Beacon 5 Joule
The E2S E2xB05 is a 5 Joule Xenon Strobe Beacon with a 1Hz (60 fpm) flash rate.
The E2S E2xB05 is a 5 Joule Xenon Strobe Beacon with a 1Hz (60 fpm) flash rate. The hazardous area E2S E2xB05 Xenon Strobe Beacon is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
The E2S E2xB05 Beacon features enclosures manufactured from lightweight, high performance PPS which, with its corrosion proof properties, is suitable for the harshest of environments.
Features
Very large termination area
Ratchet adjustable stainless steel ‘U’ bracket
Stainless steel dome guard as standard
Xenon tube mechanically secured against vibration and shock
User replaceable Xenon tube assembly
Duplicate cable terminations (in and out for daisy-chain installations)
Tropicalisation available on request.
| Energy | 5 Joules (5Ws) |
|---|---|
| Flash rate | 1Hz (60 fpm) |
| Peak Candela | 34,122 cd* – measured ref. to I.E.S., 500,000 cd – calculated from energy (J) |
| Eff. Intensity cd | 108 cd* – measured ref. to I.E.S., 250 cd – calculated from energy (J) |
| Lens colours | Amber, Blue, Clear, Green,, Magenta, Red & Yellow |
| Voltage DC | 12Vdc; 24vdc; 48Vdc |
| Voltage AC | 115Vac; 230Vac |
| Ingress protection | IP rating per EN60079-0:IP64, IP rating per EN60529:IP66, Type rating per UL50E/NEMA250:4/4X/13 |
| Enclosure material | UL94V0 GRP (PPS) & ABS |
| Lens material | Borosilicate glass dome with PC prismatic lens cover. |
| Guard | Stainless Steel dome guard as standard |
| Cable entries | Dual M20x1.5 or 1/2″NPT |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG) |
| Line monitoring | Blocking diode included, EOL can be factory fitted |
| Operating temperature | -20 to +55°C [-4° to +131°F] |
| Storage temperature | -40 to +70°C [-40° to +158°F] |
| Relative Humidity | 90% at 20°C [68°F] |
| Weight | 1.48kg/3.25Ibs |
