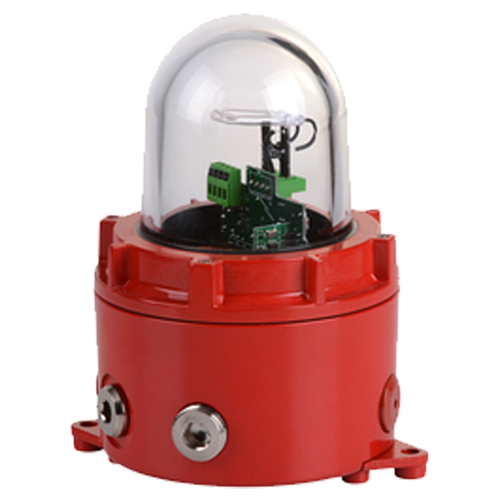

| Source | Xenon Strobe |
|---|---|
| Energy | 21 Joules |
| Modes | 1.3Hz flash (80 fpm), 1.5Hz flash (90 fpm), 1Hz flash (60 fpm), Double flash (120 fpm) |
| Eff. Intensity cd | 190.6 cd UL1971 Public mode fire |
| Peak Intensity cd | 2,100,000 cd |
| Synchronization | Flash rates synchronize for a minimum of 2 hours per UL1971 |
| Voltage | 24V dc (20-28V dc) |
| Ingress protection | IP rating per EN60529:IP66/67, Type rating per UL50E/NEMA250:4/4X/3R/13 |
| Enclosure material | Marine grade LM6 aluminum alloy |
| Enclosure Color | Red (RAL3000) |
| Lens material | High impact Borosilicate glass |
| Cable entries | |
| Measurable gases | Nickel plated brass plugs included |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG) |
| Line monitoring | Blocking diode included, EOL can be factory or user installed |
| Operating temperature | -55 to +80°C [-67° to +176°F] |
| Storage temperature | -55 to +80°C [-67° to +176°F] |
| Relative Humidity | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight | 3.2kg/7.1Ibs |
