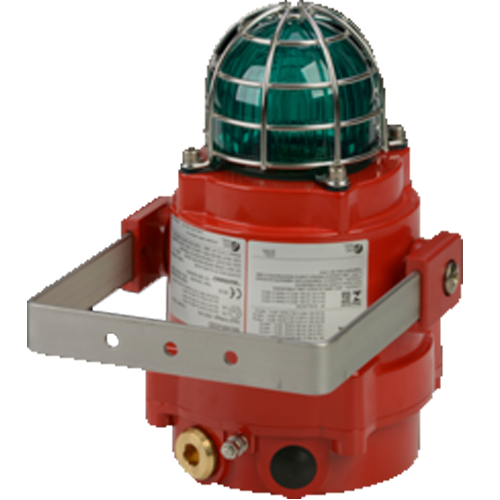

E2S BExTBG05 explosion-proof Telephone Beacon 5 Joule

The E2S BExTBG05 explosion-proof Telephone Beacon features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in and out terminals and an ingress protection of IP66/67. The flameproof E2S BExTBG05 Telephone initiated Xenon Beacon is used for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.​

The E2S BExTBG05 5 Joule units are telephone initiated Beacons. Their robust construction makes installation in the harshest of environments possible. Additional features include stainless steel lens guard and stainless steel mounting bracket as standard. The ring tone detect circuit senses the ringing voltage on the telephone line and switches the supply (115V ac or 230V ac) to enable the Beacon until the telephone is answered.

Features
Marine grade, corrosion proof, LM6 aluminium enclosure
Xenon tubes mechanically secured against shock and vibration
Glass lens and stainless steel guard
Very large termination area
Dual M20 cable entries – adaptors available
Stopping plug included
Ratchet adjustable stainless steel ‘U’ bracket
120 candela effective light intensity
UV stable PC, field replaceable, color lens filter.
