| Nominal output | 117.5dB(A) @ 1m +/- 3dB – Tone 4 [108.5dB(A) @ 10ft/3m] |
|---|---|
| No. of tones | 5 |
| No. of stages | 3 |
| Volume control | Yes |
| Effective range | 200m/656ft @ 1KHz |
| Voltage DC | 24vdc |
| Voltage AC | 115Vac; 230Vac |
| Stage switching | Negative |
| Ingress protection | IP66/67 |
| Enclosure material | Marine grade copper free LM6 Aluminium |
| Enclosure finish | Chromate & powder coated finish – anti-corrosion. |
| Color | Grey, Red, Special – available on request |

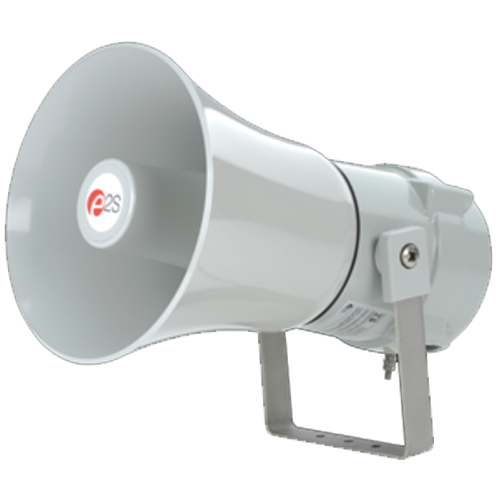

| BExH120 horn | High impact UL94 V0 & 5VA FR ABS |
| Cable entries | Dual M20 ISO (one stopping plug inc) |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG) |
| Line monitoring | Blocking diode included, EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor, or diode (DC versions) can be fitted |
| Relative Humidity | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight | DC: 3.20kg/7.04Ibs AC: 3.40kg/7.48Ibs |
