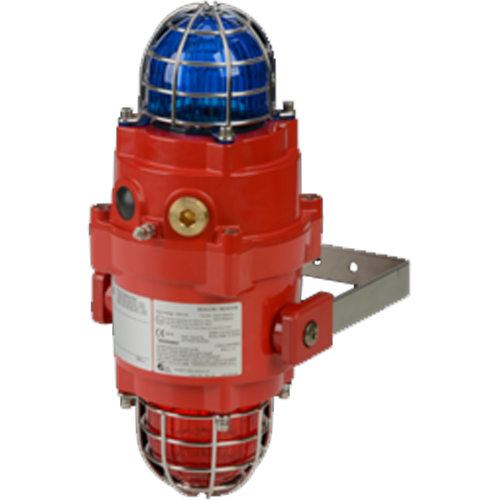

E2S BExCBGL2-05 LED & Xenon Dual Beacon
The BExCBGL2-05D dual LED & 5 Joule Xenon Beacons robust construction enables installation in the harshest of environments.
The BExCBGL2-05D dual LED & 5 Joule Xenon Beacons robust construction enables installation in the harshest of environments. The Beacons may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67. The flameproof BExCBGL2-05 dual LED and Xenon Beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx and ATEX standards.
Features
Marine grade, corrosion proof, LM6 aluminium enclosure
Automatic synchronisation on multi-beacon system
Glass lens & stainless steel guard
Very large termination area
Dual M20 cable entries – adaptors available
Stopping plug included
Ratchet adjustable stainless steel ‘U’ bracket
Reverse polarity diode fitted
120+160 candela effective light intensity
UV stable PC, field replaceable, color lens filters.
| Energy | 5 Joules (5Ws) |
|---|---|
| Flash rate | 1Hz (60 fpm) |
| Peak Candela | 39,463 cd – 1Hz flash |
| Eff. Intensity cd | 120 cd – 1Hz flash(Xenon beacon), 160 cd – 1Hz flash(LED beacon), 87 cd – High Power Steady(LED beacon) |
| Source | Array of 4 x High Power Cree LEDs |
| Lens colours | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltage DC | 24vdc |
| Voltage AC | 115Vac; 230Vac |
| Ingress protection | IP66/67 |
| Enclosure material | LM6 Aluminium, Marine grade copper free |
| Enclosure finish | Chromate & powder coated finish – anti-corrosion. |
| Color | (others available on request), Red |
| Cable entries | Dual M20 ISO (one stopping plug inc) |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG) |
| Line monitoring | Blocking diode included, EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor, or diode (DC versions) can be fitted |
| Grounding stud | M5 |
| Temperature range | -50° to +70°C (-58°F to +158°F) |
| Relative Humidity | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Tube life | Emissions are reduced to 70% after 8 million flashes |
| LED life | 60,000 hours |
| Weight | DC: 4.00kg/8.8Ibs AC: 4.35kg/9.57Ibs |
