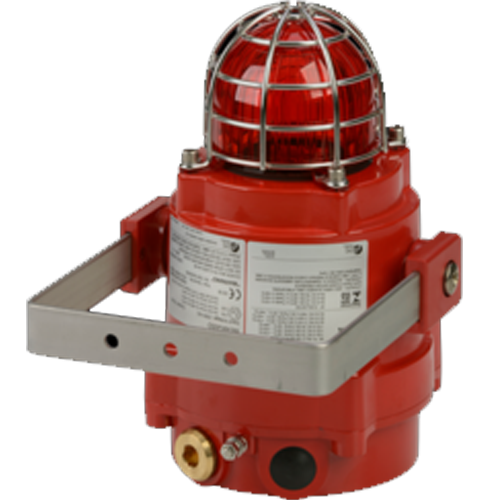

E2S BExBG05 explosion-proof Xenon Beacon 5 Joule
The E2S BExBG05 explosion-proof Xenon Beacon features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish.
The E2S BExBG05 explosion-proof Xenon Beacon features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have 2 M20 cable entries, large termination areas containing in and out terminals and an ingress protection of IP66/67. The flameproof E2S BExBG05 Xenon Beacon is used for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
The E2S BExBG05 5 Joule Beacons robust construction enables installation in the harshest of environments. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
| Energy | 5 Joules (5Ws) |
|---|---|
| Flash rate | 1Hz (60 fpm) |
| Peak Candela | 39,463 cd* – measured ref. to I.E.S., 500,000 cd – calculated from energy (J) |
| Eff. Intensity cd | 120 cd* – measured ref. to I.E.S., 250 cd – calculated from energy (J) |
| Lens colours | Amber, Blue, Clear, Green, Red & Yellow |
| Voltage DC | 12Vdc; 24vdc; 48Vdc |
| Voltage AC | 115Vac; 230Vac |
| Ingress protection | BG05D : IP66/67 BG05E : IP66 |
| Enclosure material | Marine grade copper free LM6 Aluminium |
| Enclosure finish | Chromate & powder coated finish – anti-corrosion. |
| Color | (others available on request), Red |
| Cable entries | Dual M20 ISO (one stopping plug inc) |
| Terminals | 0.5 – 2.5mm2 (20-14 AWG) |
| Line monitoring | Blocking diode included, EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor, or diode (DC versions) can be fitted |
| Grounding stud | M5 |
| Temperature range | -50° to +70°C (-58°F to +158°F) |
| Relative Humidity | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Tube life | Emissions are reduced to 70% after 5 million flashes |
| Weight | DC: 2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs |
