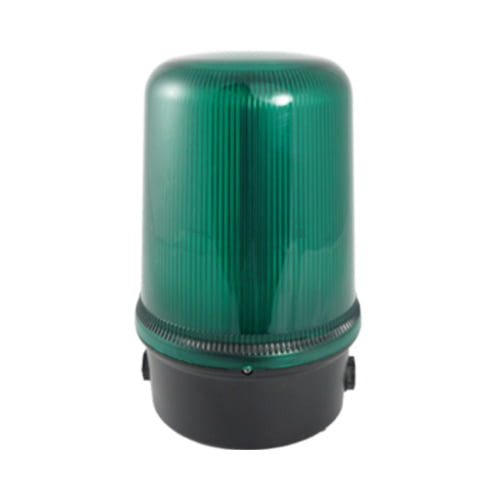

E2S B400LDA LED Beacon
The E2S B400 Series consists of Xenon Strobe Beacons, permanent filament bulb or halogen Beacon, blinking filament bulb or halogen Beacon, rotating halogen Beacon and a multi-function LED array Beacon.
The E2S B400 Series consists of Xenon Strobe Beacons, permanent filament bulb or halogen Beacon, blinking filament bulb or halogen Beacon, rotating halogen Beacon and a multi-function LED array Beacon. The surface Mount Base can also be supplied with a right angle bracket or with a pole mounted assembly.
Features
Bayonet fixing lens
Anti-tamper locking screw
Stainless steel fixings
Multiple cable entries.
| Light Source | Array of 32 high output L.E.D’ .s |
|---|---|
| Function | *4 flashing configurations., *Steady mode for status applications., Total of 9 user selectable operation modes: |
| Stages | 2nd & 3rd stage pattern., DC unit: remotely selectable |
| Peak/Effective Intensity cd | 30 cd* – measured ref. to I.E.S. |
| Lens colours | Amber, Blue, Clear, Green, Red & Yellow |
| Lens type | Prismatic (standard) or plain |
| Mounting | Surface mount (right angle or pole mount accessories available) |
| Entries | 1x 5-7mm push through grommet, 2 x M20 cable entry |
| Dimensions | ø140 x 220mm |
| Ingress protection | IP65 |
| Housing Material | High impact UL94 V0 (f1) PC |
| Lens material | High impact UL94 V0 (f1) PC |
| Terminals | 1.5 mm2 flying lead assembly |
| Operating temperature | -25 to +50°C [-13 to +122°F] |
| Storage temperature | -40 to +70°C [-40 to +158°F] |
| Relative Humidity | 90% at 20°C [68°F] |
| Weight | AC:845g/1.85Ibs DC:595g/1.3Ibs |
