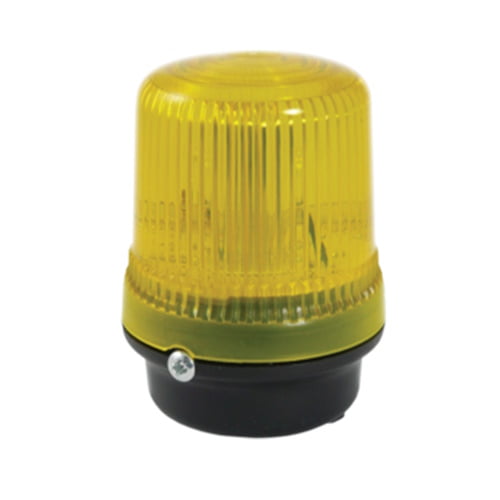

E2S B200STR Xenon Strobe Beacon
The E2S B200 Series consists of a Xenon Strobe Beacon, permanent filament bulb, blinking filament bulb and a permanent LED array Beacon version.
The E2S B200 Series consists of a Xenon Strobe Beacon, permanent filament bulb, blinking filament bulb and a permanent LED array Beacon version. The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.
Features
Bayonet fixing lens
Anti-tamper locking screw
Stainless steel fixings.
| Light Source | Xenon Strobe |
|---|---|
| Energy | 1 Joule (1Ws) |
| Flash frequency | 0.75 Hz |
| Lens colours | Amber, Blue, Clear, Green, Red & Yellow |
| Lens type | Prismatic (standard) or plain |
| Peak Candela | 59,155 cd* – measured ref. to I.E.S. |
| Eff. Intensity cd | 37 cd* – measured ref. to I.E.S. |
| Mounting | Surface mount (right angle or pole mount accessories available) |
| Ingress protection | IP65 |
| Housing Material | High impact UL94 V0 (f1) PC |
| Terminals | 0.5 to 1.5mm2 |
| Operating temperature | -25 to +50°C [-13° to +122°F] |
| Storage temperature | -40 to +70°C [-40° to +158°F] |
| Relative Humidity | 90% at 20°C [68°F] |
| Weight | 78g/1.71Ibs |
