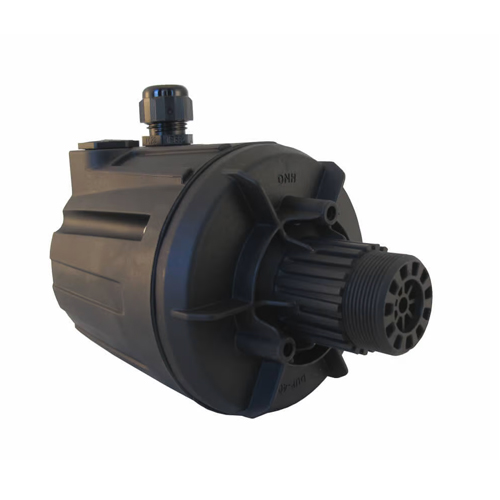

DNH DUP-40(T) Driver Unit
The DNH DUP-40(T) is a 40W driver unit with a combined transformer 100V/70V line.
The DNH DUP-40(T) is a 40W driver unit with a combined transformer 100V/70V line. The DUP-40(T) has an excellent SPL, a loop in loop out system with easy access to the terminal and a material that is corrosion free.
| Material | Plastic – (V0) |
|---|---|
| Color | Black |
| Mounting | Threaded UNEF |
| Termination | Ceramic terminal |
| Weight | 1.2 kg |
| IP Rating | IP67 |
| Temperature range | -50 °C / 90 °C |
| Power | 40 W |
| SPL 1W/1m | 113 db |
| SPL Rated Power | 127 db |
| Frequency range | 250 – 8125 Hz |
| Dispersion | (-6dB) 1kHz / 4kHz 40° / 35° |
| Option | color, Impedance, Label |
