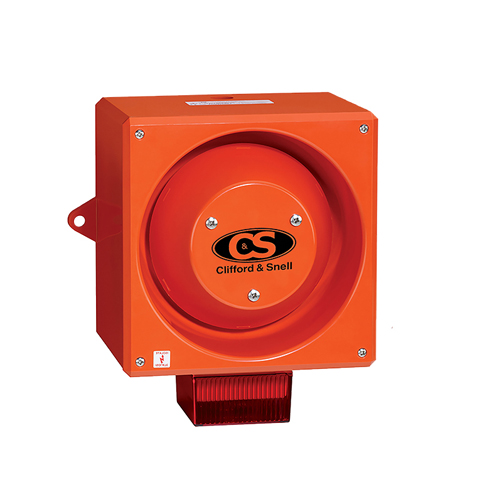

Clifford & Snell YL80 Industrial Combination Signal 116 dB (A) / 5 Joule
The Clifford & Snell YL80 is a 116 dB (A) & 5 Joule Industrial Combination Signal.
The Clifford & Snell YL80 is a 116 dB (A) & 5 Joule Industrial Combination Signal. The YL80 is a high output multi-purpose audible and visual signalling device designed for use in industrial applications.
Features
Max sound output
116 db (A) / 1 m
IP66 rated as standard
Strobe available in 5 Joules
32 selectable tones meeting international regulations
Stainless steel fixings
2 stage alarm
Independently selectable second stage
Lens available in six different colours
Low current consumption
| Applications | Fire, Industrial, Marine |
|---|---|
| Beacon Output | Flashing |
| Certification | Kite Mark, MED, UL, VdS |
| Current Type | AC, DC |
| dB | > 110dB |
| Enclosure Color | Red |
| FPM | 60 |
| Frequency | 50/60 Hz |
| IP Rating | IP66 |
| Lens Color | Amber, Blue, Clear, Green, Opal, Red |
| Light Source | Xenon |
| Material | Fire Retardent PC/ABS |
| Nominal voltage | 115V, 230V, 24v |
| No. of tones | 32 |
| Power Rating | Close Proximity Signalling |
