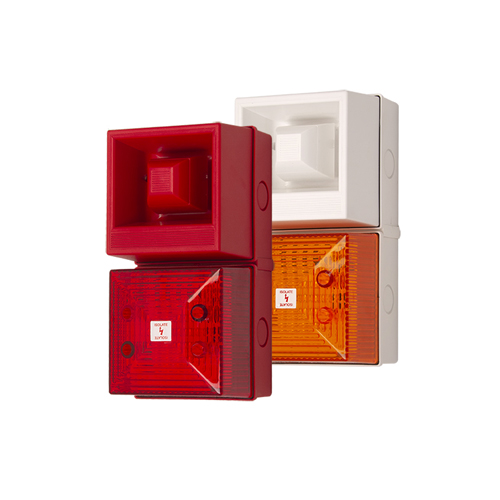

Clifford & Snell YL40 Industrial Combination Signal 108 dB (A)
The Clifford & Snell YL40 is a 108 dB (A) Industrial Combination Signal.
The Clifford & Snell YL40 is a 108 dB (A) Industrial Combination Signal. The YL40 is a multi-purpose Audible & Visual Signalling Device designed for use in Commercial, Light Industrial & Marine applications
Features
Max sound output
108 db (A) / 1 m
Max sound output 108 dB(A) @ 1m
IP65 rated as standard
Beacon options include:
High Brightness LED
5 Joule Xenon Strobe
2. 5 Joule Xenon Strobe (optional)
32 selectable tones meeting international regulations
Flame retardant ABS enclosure
Robust, reliable and simple to install
Independently selectable second stage
Stainless steel fixings
2 stage alarm
Independently selectable second stage (optional)
Low current consumption
Lens available in 8 colours
| Applications | Fire, Industrial, Marine |
|---|---|
| Beacon Output | Flashing |
| Current Type | AC, DC |
| dB | 100-110dB |
| Enclosure Color | Red, White |
| FPM | 60, 60/120 |
| Frequency | 50/60 Hz |
| IP Rating | IP65 |
| Lens Color | Amber, Blue, Clear, Green, Magenta, Opal, Red, Yellow |
| Light Source | LED, Xenon |
| Material | Fire Retardent PC/ABS |
| Temperature range | -35°C to +70°C |
| Nominal voltage | 115V, 230V, 24v, 48V |
| No. of tones | 32 |
| Power Rating | Close Proximity Signalling |
| Certification | Kite Mark, MED |
