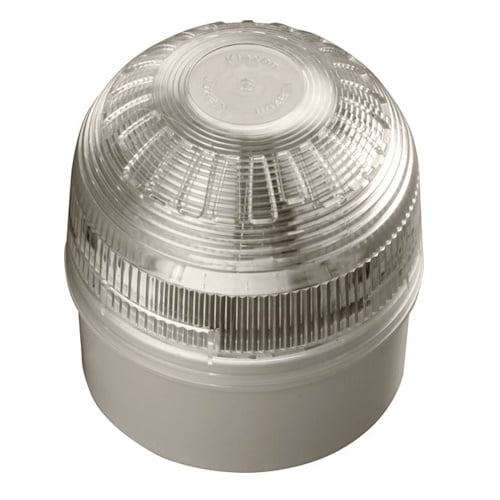

Apollo XP95 55000-010APO Open Area Visual Indicator (White body, Red Flash) with Isolator
The Apollo XP95 55000-010APO is an Open Area Visual Indicator with a white Body and a red Flash, and comes with an Isolating Base as standard.
The Apollo XP95 55000-010APO is an Open Area Visual Indicator with a white Body and a red Flash, and comes with an Isolating Base as standard. The Apollo 55000-010APO is loop powered, designed for indoor use and can be connected to detection systems using XP95 or Discovery detectors and control panels using the appropriate software. The 55000-010APO is used as a supplement to sounders, in situations where there is a risk that sounders will not be heard.
The Apollo 55000-010APO can also be used to give a staff alarm where the use of sounders is undesirable. e.g. in TV or radio studios, cinemas, theatres, hospital operating theatres and
high dependency units or care homes.
Features
High intensity LEDs
More reliable than xenon visual indicators
Automatic LED check
Wide angle of visibility
Lockable – like a detector
Synchronized flash
Enables DDA compliance
Can be used with Discovery or XP95
| Warranty | 10 year |
|---|---|
| Color | White |
| Materials housing | Polycarbonate |
| Height | 97.5mm (3.84in) |
| Diameter | 104mm (4.09in) |
| Weight | 205g |
| Polarity | L1 & L2 are polarity sensitive |
| Power-up surge current | 01-02-23 |
| Maximum power-up time | <1 second |
| Quiescent current | 333μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Humidity (max) | 95% RH |
| Humidity (min) | 0% RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature (max) | 55°C (131°F) |
| Operating temperature (min) | -10°C (14°F) |
| Operating temperature | -10°C to 55°C (14°F to 131°F) |
| IP rating Value | IP65 |
