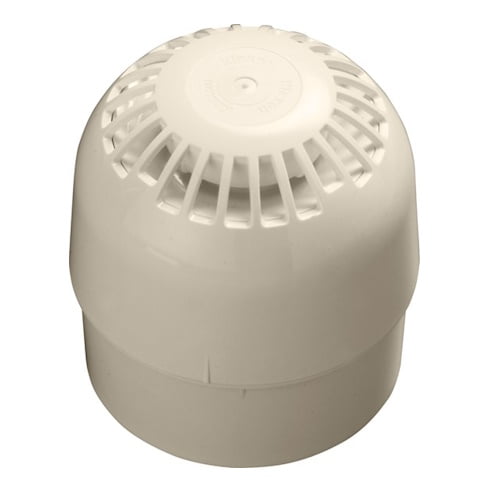

Apollo XP95 55000-002APO Intelligent Open Area White Sounder with Isolator
The Apollo XP95 55000-002APO is an intelligent open area white sounder with a built in isolator.
The Apollo XP95 55000-002APO is an intelligent open area white sounder with a built in isolator. The Apollo XP95 55000-002APO is a loop powered, wall mounted device, designed for use in open areas. The Apollo 5500-002APO is suitable for use with any XP95, Discovery or CoreProtocol system.
The sounder reaches a nominal sound output of 100dB(A) at a current consumption of 5mA. The maximum number of sounders that can be connected to a loop should be determined by a loop loading calculation using the Apollo Loop Calculator
Features
Three tones on standard devices; Apollo, Slow-whoop and DIN all of which comply with EN 54-3
Two volume settings 92 dB (A) and 100 dB (A)
Synchronisation of tones and flashes
Individual and group addressing
EN54 versions available with built-in isolator
Wire-to base for simple interchange of devices
Device locking facility
Self-test fault monitoring
Built in isolator
Loop-powered
IP65 rated
| Warranty | 10 year |
|---|---|
| Maximum sound output tone | 100dB (A) |
| Selectable volume(s) | 100dB (A), 92dB (A) |
| Color | White |
| Materials housing | Polycarbonate |
| Height | 97.5mm (3.84in) |
| Diameter | 104mm (4.09in) |
| Weight | 225g |
| Standards | EN 54-3 |
| Approvals | CPR, LPCB, VdS |
| Polarity | L1 & L2 are polarity sensitive |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Power-up surge current | 01-02-23 |
| Maximum power-up time | <1 second |
| Quiescent current | 333μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Storage temperature (min) | -10°C |
| Storage temperature (max) | 55°C |
| Storage temperature | -10 to 55°C |
| Humidity (max) | 95% RH |
| Humidity (min) | 0% RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature (max) | 55°C (131°F) |
| Operating temperature (min) | -10°C (14°F) |
| Operating temperature | -10°C to 55°C (14°F to 131°F) |
| IP rating Value | IP65 |
