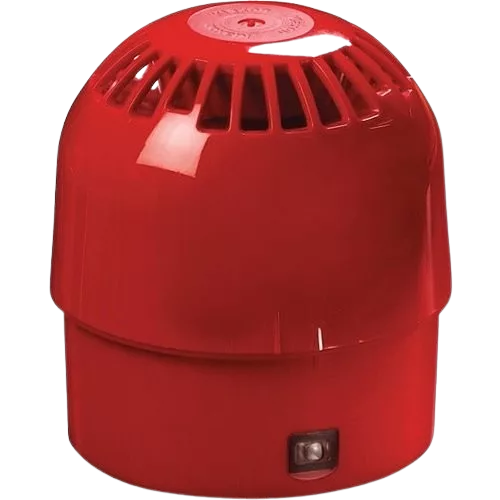

Apollo Intelligent Open-Area Sounder – red (55000-001POL)
The Apollo Intelligent Open-Area Sounder – red (55000-001POL) has been designed for use in open areas and can be connected to any Discovery or XP95 system.
Apollo Intelligent Open-Area Sounder Red (55000-001POL)
The Apollo Intelligent Open-Area Sounder (55000-001POL) provides powerful audible warning signals for fire alarm and emergency notification systems. Designed for use with Apollo XP95 and Discovery addressable fire alarm systems, the sounder delivers reliable alarm signalling in open areas while offering advanced monitoring and control capabilities.
Powered directly from the detection loop, the sounder eliminates the need for separate power supplies, helping to simplify installation and reduce wiring costs. Furthermore, its intelligent functionality allows the fire alarm control panel to monitor device status continuously, ensuring reliable operation and rapid fault identification.
The 55000-001POL offers a choice of industry-recognised alarm tones, including Apollo, Slow Whoop, and DIN tones. Users can also select between two sound output levels of 92 dB(A) and 100 dB(A) to suit the application and environmental conditions.
In addition, the sounder supports both individual and group addressing, enabling flexible alarm management across the fire detection system. Built-in synchronisation ensures all connected sounders operate in unison, creating a clear and consistent alarm signal throughout the protected area.
To further enhance system reliability, Apollo incorporates an integrated short-circuit isolator and self-test fault monitoring, helping maintain system integrity and simplify maintenance procedures.
Key Features
- Intelligent addressable open-area sounder
- Part Number: 55000-001POL
- Compatible with Apollo XP95 and Discovery fire alarm systems
- Loop-powered operation
- No separate power supply required
- Self-test fault monitoring
- Integrated short-circuit isolator
- Choice of alarm tones:
- Apollo
- Slow Whoop
- DIN
- Selectable sound output levels:
- 92 dB(A)
- 100 dB(A)
- Sounder synchronisation across the loop
- Individual and group addressing
- Reliable addressable communication
- Available in red housing
- Suitable for open area alarm applications
Typical Applications
- Office buildings
- Schools and universities
- Hospitals and care facilities
- Hotels and hospitality venues
- Retail stores and shopping centres
- Warehouses and distribution centres
- Industrial and manufacturing facilities
- Public and government buildings
- Airports and transportation hubs
- Residential and mixed use developments
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | 55000-001POL |
| Product Type | Intelligent Open-Area Sounder |
| System Compatibility | Apollo XP95 & Discovery Systems |
| Protocol Voltage | 5 to 9 V Peak-to-Peak |
| Supply Voltage | 17–28 V DC |
| Power Supply | Loop Powered |
| Quiescent Current | 333 µA @ 24 V DC |
| Power-Up Surge Current | 1.2 mA |
| Sound Output Levels | 92 dB(A) or 100 dB(A) Selectable |
| Number of Tones | 3 (Apollo, Slow Whoop, DIN) |
| Synchronisation | Yes |
| Addressing | Individual and Group Addressing |
| Short-Circuit Isolator | Integrated |
| Self-Test Monitoring | Yes |
| Housing Colour | Red |
| Housing Material | Polycarbonate |
| Diameter | 104 mm |
| Depth | 97.5 mm |
| Weight | 225 g |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -10°C to +55°C |
| Humidity Range | 0–95% RH (Non-Condensing) |
| IP Rating | IP65 |
| Polarity | Polarity Sensitive |
| Standard | EN 54-3 |
| Approvals | LPCB, VdS, CPR |
| Warranty | 10 Years |
