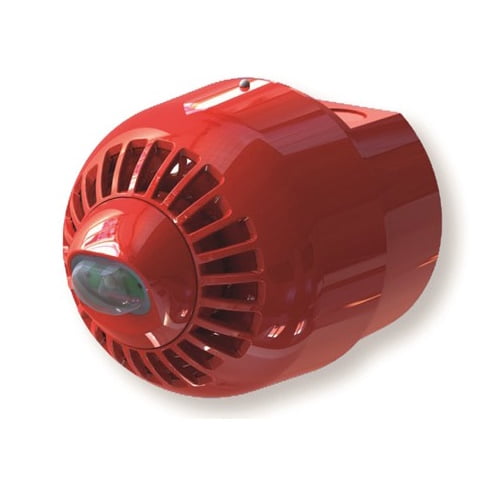

Apollo Sonos Pulse Wall Sounder VAD, Deep Base, red body/white flash – W-3.1-11.3 (29600-806)

The Apollo Sonos Pulse Wall Sounder VAD (29600-806) combines powerful audible alarm signalling with a highly visible white flashing beacon. Providing effective warning in fire alarm and emergency notification systems. Designed for applications where both audible and visual alarm indication are required, the unit helps ensure alarm signals are clearly recognised throughout the protected area.

The 29600-806 features a white flash visual alarm device (VAD) and delivers a sound output of up to 97 dB(A), providing clear alarm notification in a wide range of environments. In addition, the integrated visual alarm device produces a synchronised flash pattern, ensuring multiple units operate together to create a consistent and easily identifiable warning signal throughout the installation.

Furthermore, the Sonos Pulse range is available with either red or white flash variants, allowing specifiers to select the most appropriate solution for the application. The white flash version (29600-806) is EN 54-23 approved with a coverage pattern of W-3.1-11.3, while the red flash version (29600-807) provides a coverage pattern of W-2.4-7.5.

The deep base version achieves an IP65 ingress protection rating, allowing the device to operate reliably in challenging indoor and outdoor environments where protection against dust and water ingress is essential.

Key Features

• Combined sounder and visual alarm device (VAD)
• Part Number: 29600-806
• White flash visual indication
• Sound output up to 97 dB(A)
• Synchronised flash operation
• EN 54-23 approved
• White flash coverage pattern: W-3.1-11.3
• Deep base version with IP65 protection
• Shallow base version available with IP21 protection
• Suitable for fire alarm and emergency warning applications
• Provides both audible and visual alarm notification from a single device
• Reliable and robust construction
• Ideal for commercial, industrial, marine, and public building applications
