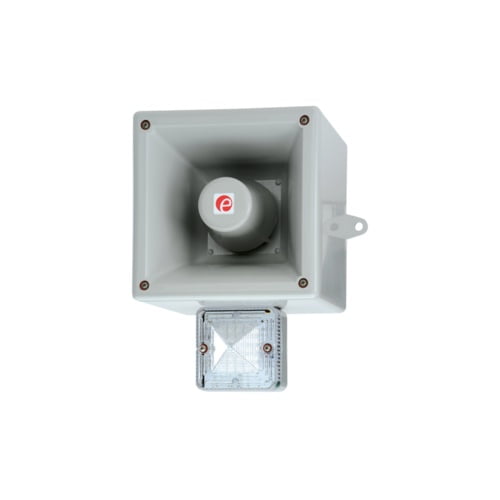

E2S HAL121H Electronic Siren, Buzzer, Claxon & Bell with LED Beacon
With output levels of up to 121dB(A) at 1 metre the E2S HAL121 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires no maintenance and the signal quality will not degrade with age.
Applications and users that have traditionally demanded conventional electromechanical claxons, sirens, buzzers and bells can now choose the next generation alternative.
The E2S ‘Hootronic’ series of products faithfully reproduce the sounds made by legacy electro-mechanical signalling devices but in a modern, reliable and cost effective way.
With output levels of up to 121dB(A) at 1 metre the E2S HAL121 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires no maintenance and the signal quality will not degrade with age.
Features
High output LED array
Automatic synchronisation on multi-sounder system
Continuously rated
Stainless steel fixings
Unit can be mounted using external lugs or internal BESA compatible fixing positions
Duplicate cable terminations (in and out for daisy-chain installations)
Tropicalisation available on request.
| Nominal output |
121dB(A) @ 1m +/- 3dB – Tone 2 [112dB(A) @ 10ft/3m] |
|---|---|
| No. of tones |
5 |
| No. of stages |
3 |
| Volume control |
Max. 121dB(A); Min. 112dB(A) approx. |
| Effective range |
300m/984ft @ 1KHz |
| Light Source |
High intensity L.E.D. array. ,24 x Superflux type high ouput L.E.D's |
| Options |
Steady or 2Hz flash mode (on board selection) |
| Peak/Effective Intensity cd |
Green L.E.D: 176cd – measured ref. to I.E.S. |
| Terminals |
0.5 to 4.0mm2 cables. |
| L.E.D. colours |
Amber Blue, Green, Red and White |
| Lens colours |
All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light |
| Voltage DC |
24V dc |
| Voltage AC |
115V ac; 230V ac |
| Ingress protection |
IP56 |
| Housing Material |
High impact UL94 V0 & 5VA FR ABS |
| Color |
Red (RAL3000) & grey (RAL7038) |
| Cable entries |
2 x M20 clearance gland knockouts in side & back |
| Operating temperature |
-25 to +55°C [-13° to +131°F] |
| Storage temperature |
-40 to +70°C [-40° to +158°F] |
| Relative Humidity |
90% at 20°C [68°F] |
| Weight |
DC: 2.30kg/5.06Ibs AC:2.90kg/6.38Ibs |
