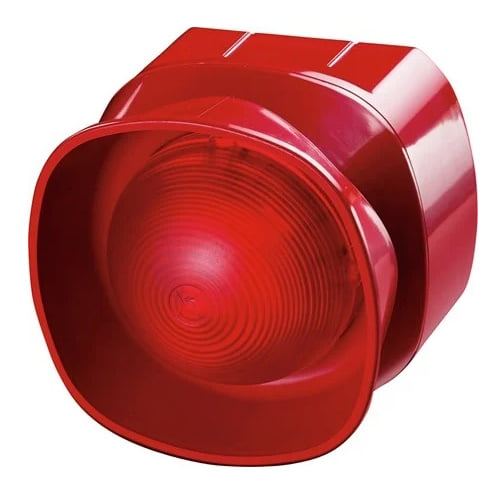

Apollo XP95 55000-293APO Open-Area Weatherproof Multi-Tone Sounder/Beacon (Red Body, red flash) with Isolator
The Apollo 55000-293APO is a Multi-Tone, red body, red flash, Open-Area sounder/beacon with isolator, designed for indoor use (indoor Type A).
The Apollo 55000-293APO is a Multi-Tone, red body, red flash, Open-Area sounder/beacon with isolator, designed for indoor use (indoor Type A). The Apollo 55000-293APO can be connected to any XP95 or Discovery System. The 55000-293APO sounder is powered directly from the loop, and does not need an external power supply. It operates at 18-28VDC and is polarity sensitive.
The sounder reaches a nominal sound output of 100dB(A) at a current consumption of 5mA. The maximum number of sounders that can be connected to a loop should be determined by a loop loading calculation using the Apollo Loop Calculator
Features
two volume settings 92dB(A) and 100dB(A)
synchronisation of alert and evacuate tones
individual & group addressing
available with or without built-in isolator
weatherproof version available
three tones on standard devices; Apollo, slow whoop and DIN all of which comply with EN54-3:20013
IP66 rated
Loop powered
| Warranty |
10 year |
|---|---|
| Maximum sound output tone |
100dB (A) |
| Selectable volume(s) |
100dB (A) ,92dB (A) |
| Color |
Red |
| Length |
105mm (4.13in) |
| Diameter |
105mm (4.13in) |
| Height |
90mm (3.54in) |
| Weight |
290g |
| Approvals |
CPR |
| Power-up surge current |
01-02-23 |
| Maximum power-up time |
<1 second |
| Quiescent current |
330μA |
| Quiescent current tested at |
24V dc |
| Supply voltage (min) |
18V dc |
| Supply voltage (max) |
28V dc |
| Supply voltage (Vmin-Vmax) |
18 to 28V dc |
| Operating temperature (max) |
55°C (131°F) |
| Operating temperature (min) |
-10°C (14°F) |
| Operating temperature |
-10°C to 55°C (14°F to 131°F) |
| IP rating Value |
IP21C |
