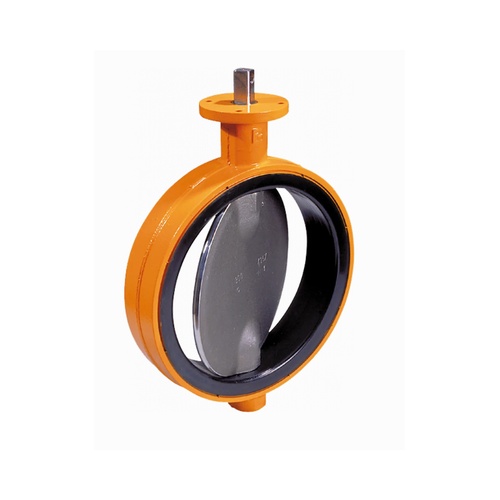

Wouter Witzel EVS Ruberlined Butterfly Valve

Body Flangeless wafer type
End Connection ASME B16.5 cl. 150 / B16.47 cl. 150 , AWWA C207 cl. B, D and E , BS 10 table D and E , EN 1092 PN 6, 10 and 16 , JIS 5K/10K/16K , MSS SP 44 cl. 150
Face to Face API 609 Cat. A , EN558-1/2 Series 20
Body Seat Non replaceable Lining bonded to the body
Shaft Seal Design O-ring bush
Driving Shaft With indication for position of the disc
SKU: Wouter-Witzel-EVS Categories: , , Tag:
