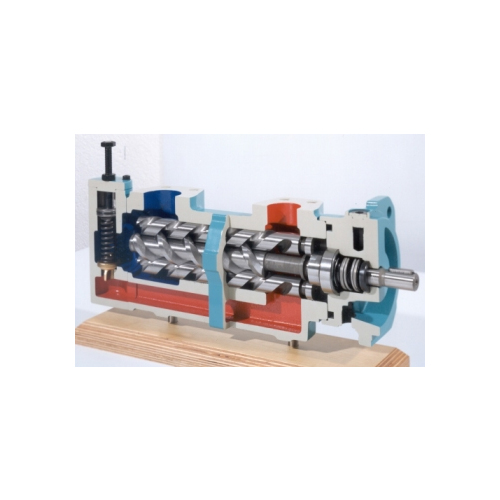

Allweiler Series TRILUB TRL Three Screw Pump

The Allweiler TRILUB TRL is a three screw pump designed for the reliable transfer and circulation of clean lubricating liquids in industrial, marine, Offshore, and petrochemical applications. With a maximum operating pressure of 16 bar, the TRL series combines smooth, low pulsation flow with high operational reliability and excellent self-priming characteristics.

The TRILUB TRL is specifically intended for handling lubricating liquids that are free from abrasive particles and do not chemically attack the pump materials.

Suitable liquids include:

• Lubricating oils
• Hydraulic oils
• Light fuel oils
• Other clean lubricating liquids

Typical Applications

The Allweiler TRILUB TRL provides reliable pumping performance for lubrication, hydraulic, and fuel oil systems across a broad range of industrial and marine applications.

Common applications include:

• Oil-fired systems
• Hydraulic installations
• Mechanical engineering
• General industrial technologies
• Chemical and petrochemical industries
• Marine and Offshore engineering
• Lube oil systems

Key Features

• Three-screw positive rotary pump design
• Operating pressure up to 16 bar
• Self-priming capability
• Equipped with shaft sealing
• Smooth, low-pulsation flow
• Suitable for constant duty operation
• Designed for clean lubricating liquids
• Available in both horizontal and vertical configurations
• Suitable for dry-mounted and under water installations

Installation Options

The TRILUB TRL series is available in a variety of installation and mounting configurations:

• Bulkhead mounting
• Pedestal mounting
• Dry installation
• Submerged design
• In-tank installation
• Vertical installation
• Horizontal installation

This flexibility allows the pump to be integrated into a wide range of system layouts, particularly in marine and Offshore environments where space and installation requirements can vary.
