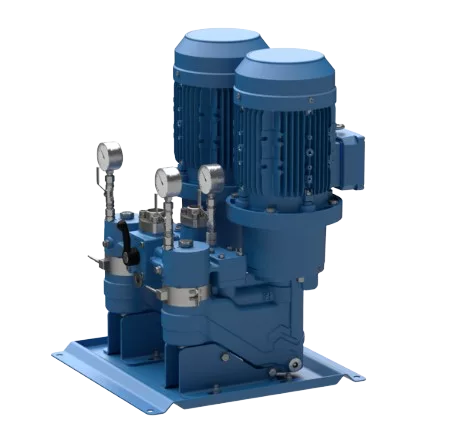

Allweiler ALLFUEL AFM-T Three Screw Pump

The Allweiler ALLFUEL AFM-T is a three-screw pump with a magnetic coupling (Magdrive) designed for handling lubricating liquids

Login to see prices

Add to quote

Allweiler ALLFUEL AFM-T

The Allweiler ALLFUEL AFM-T is a three-screw pump with a magnetic coupling (Magdrive) designed for handling lubricating liquids such as fuel oils, lube oils, and hydraulic oils. Unlike the AFT, the AFM-T is a sealless design, eliminating the need for a conventional mechanical shaft seal and reducing the risk of leakage. It is intended for applications requiring higher pressures, up to 40 bar differential pressure.

Typical Applications

Oil firing installations:
- Fuel transfer pumps
- Booster pumps
- Burner supply pumps
Marine fuel and lubricating oil systems
Tank farm transfer and tank drainage systems
Industrial lubrication systems for:
- Gearboxes
- Motors
- Hydraulic installations

Key Features

Three-screw pump technology with low pulsation flow.
Magnetic-drive construction with no dynamic shaft seal.
Self-priming capability.
Suitable for hazardous or environmentally sensitive applications where leakage prevention is important.
Available for horizontal, vertical, dry-mounted, in-tank, and bulkhead-mounted installations.

Technical Specifications

Parameter	AFM-T
Pump Type	Three-screw pump
Drive Type	Magnetic coupling (sealless)
Capacity	Up to 112 l/min
Inlet Pressure	Up to 7 bar (AFM-T version)
Discharge Pressure	Up to 40 bar
Differential Pressure	Up to 40 bar
Viscosity	Up to 750 mm²/s (cSt)
Fluid Temperature	Up to 150°C
Speed	Up to 3600 rpm
Fluids	Fuel oil, lubricating oil, hydraulic oil and similar lubricating liquids
Self-Priming	Yes
ATEX Availability	Yes (depending on configuration)
