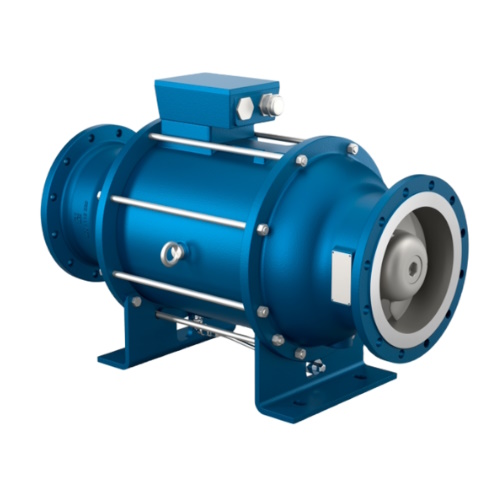

Allweiler Series ALLTRIMM Propeller Pump
The Allweiler Series ALLTRIMM is a In-line Propeller Pump with reversible hydraulics.
Allweiler ALLTRIMM Overview
The Allweiler ALLTRIMM is an in-line propeller pump with reversible hydraulics, specifically developed for anti-heeling systems in marine applications. It is designed to transfer large volumes of fresh water or seawater rapidly from one side of a vessel to the other, helping to counteract heel and maintain stability during cargo operations, loading, unloading, or turning maneuvers.
Typical Application
- Anti-heeling systems in marine engineering
- Vessel stabilization during loading and unloading operations
- Rapid ballast water transfer between tanks
Key Features
- In-line propeller pump design
- Reversible hydraulic operation for bidirectional flow
- Suitable for both fresh water and seawater
- High-capacity, low-head pumping
- Compact installation for marine systems
- Fast response for vessel trimming and heeling control
Technical Specifications
| Parameter | Value |
|---|---|
| Pump Type | In-line Propeller Pump |
| Hydraulic Design | Reversible |
| Pumped Fluids | Fresh water, seawater |
| Main Application | Anti-heeling systems |
| Capacity | 300 to 1,300 m³/h |
| Delivery Head | 10 to 20 m |
| Discharge Pressure | Up to 2.5 bar |
| Fluid Temperature | Up to 40°C |
Downloads for Allweiler Series ALLTRIMM Propeller Pump.
Below you will find all downloads available for the Allweiler Series ALLTRIMM Propeller Pump. If you need any help in finding a file that is not in this list, please do not hesitate to contact us.
