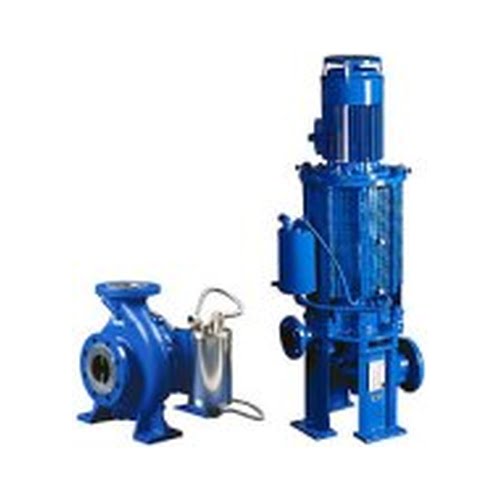

Johnson Pumps CombiPrime H&V Centrifugal Pump
The Johnson Pumps CombiPrime H&V is a self-priming, single stage Centrifugal Pump, up to EN733.
The Johnson Pumps CombiPrime H&V is a self-priming, single stage Centrifugal Pump, up to EN733. The CombiPrime H&V can be used as a vertical and as a horizontal Pump. The CombiPrime H&V is suitable for low viscosity, clean liquids when self-priming is required.
| Casing | Cast iron, Bronze |
|---|---|
| Max. liquid temperature | 80°C |
| Impeller | Cast iron, Bronze, Alu-Bronze |
| Max. pressure | 1000 kPa (10 bar) |
| Max. capacity | Vertical: 800 m3/h |
| Horizontal | 500 m3/h |
| Max. speed | 3600 rpm |
| Max. delivery head | 100 m |
| Self-priming | Up to 8 m |
