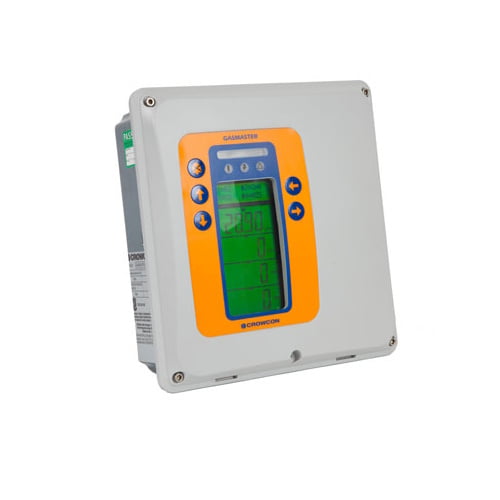

Crowcon Gasmaster Gas Detection Panel
Part no.
The Crowcon Gasmaster is a compact, versatile and powerful Gas Detection Panel, and has a modular design.
Request a quote
Add this product to your RFQ list. No account needed.
Log in to see pricing and order online
Crowcon Gasmaster Gas Detection Control Panel
The Crowcon Gasmaster is a compact, modular, and highly versatile gas detection control panel designed for small to medium sized gas detection systems. Its expandable architecture allows users to start with the number of channels required and add additional modules as system requirements grow.
The Gasmaster combines simple day-to-day operation with advanced alarm management, event logging, and communication capabilities. A large multi-language LCD display provides simultaneous viewing of all connected gas detectors, enabling operators to quickly assess site conditions and respond to alarms.
Key Features
- Compact modular gas detection control panel
- Expandable design for future system growth
- Simultaneous display of all gas levels
- Large multilingual LCD display
- User-friendly menu-driven interface
- Front-panel operation, testing, and calibration
- Customizable alarm messages with detector names or locations
- Event logging for alarms and faults
- Supports standalone operation or integration with external systems
- Multiple communication options:
- Relay outputs
- Analogue outputs
- Modbus communications
- Supports up to 4 monitoring channels
- Compatible with:
- 4-20 mA gas detectors
- mV pellistor gas detectors
- Fire inputs
- Environmental Sampling Units
- Two independent alarm levels per channel
- Remote inhibit and remote reset functions
- Flexible system configuration and re-configuration
Typical Applications
Commercial Buildings
- Boiler rooms
- Plant rooms
- Car parks
- HVAC installations
Industrial Facilities
- Manufacturing plants
- Chemical storage areas
- Process facilities
- Maintenance workshops
Refrigeration Systems
- Chiller plants
- Cold storage facilities
- Refrigerant leak detection systems
Utilities
- Water treatment facilities
- Wastewater plants
- Generator rooms
- Compressor stations
Small Gas Detection Systems
- Toxic gas monitoring
- Oxygen depletion monitoring
- Flammable gas detection
- Environmental sampling systems
Technical Specifications
| Specification | Details |
|---|---|
| Product | Gasmaster |
| Manufacturer | Crowcon |
| Type | Modular Gas Detection Control Panel |
| Maximum Capacity | Up to 4 Channels |
| Detector Compatibility | 4-20 mA & mV Pellistor |
| Supported Inputs | Gas Detectors, Fire Zones, Environmental Sampling Units |
| Display | Large Multi-Language LCD |
| Alarm Levels | 2 per Channel |
| Event Logging | Yes |
| Relay Outputs | Yes |
| Analogue Outputs | Yes |
| Modbus Communications | Yes |
| Remote Reset | Yes |
| Remote Inhibit | Yes |
| Configuration | Front Panel or Software |
| Expansion Method | Additional Input Modules |
