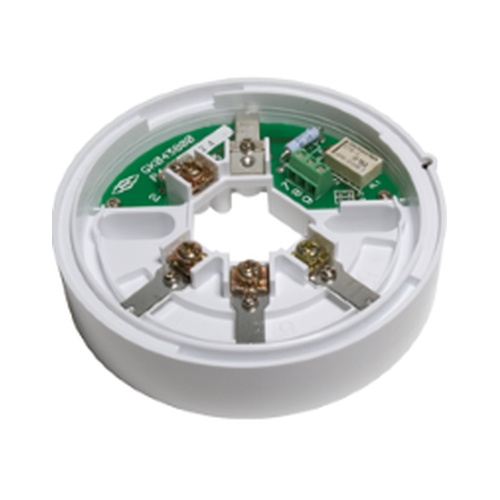

Nittan STB-4SE-24VRL Latching Relay Base (F03-82326)
The Nittan STB-4SE-24SRL is a 24V Latching Relay Base (F03-82326).
The Nittan STB-4SE-24SRL is a 24V Latching Relay Base (F03-82326).
Features
Deep Base
24v operation PCB mounted relay
Latching Relay, normally energised, failsafe operation
Volt free C/O contacts.
| Description | Deep Base 24v operating PCB Latching Relay Base for Sensortec Conventional Detectors |
|---|---|
| Mounting | Indoor mounting base |
| Nittan standard | F03-82326 |
| Voltage | 24V d.c. |
| Temperature | -10°C to + 55°C |
| Humidity | < RH95% non-condensing. |
| Material | ABS |
| Dimensions | 104.50mm x 23.00mm |
| Weight | 78g |
| EMC conformance | EMC conformance to BSEN50130-4 |
| CE conformity | Yes |
| Standards | Complies with EN54-5,7 |
