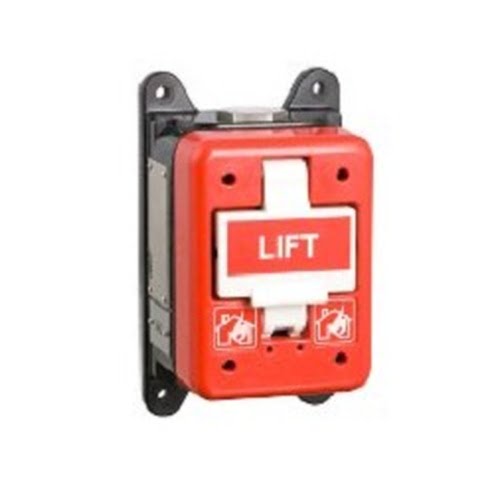

MEDC PH1 Pull Handle Call Point Exd, weather-proof
The MEDC PH1 Pull Handle Call Point is a double action Pull Handle Call Point, which has been designed for use in flammable atmospheres and harsh environments.
The MEDC PH1 Pull Handle Call Point is a double action Pull Handle Call Point, which has been designed for use in flammable atmospheres and harsh environments. The GRP enclosure is suitable for use in offshore or onshore where a lightweight Call Point combined with a high level of corrosion resistance is required.
The large “Lift” and “Pull” GRP handles of this MEDC Call Point can be operated effortlessly whilst wearing industrial gloves and require double action to raise the alarm, preventing accidental activation.
Features
Weather-proof
Zone 1 and Zone 2 use
Corrosion free GRP construction (model dependent)
Retained stainless steel cover screws
Optional in line, end of line resistors and diodes.
| Option | Cover color, Diode, Duty label, series & EOL resistors, Tag label |
|---|---|
| Material | Body/covers/handles – GRP (glass reinforced polyester) UL Class I, Div. 1 Inner, Cover – 316 (ANC4B) Stainless steel, Fixings – Stainless steel grade 316 |
| Finish | Body – natural black, Cover – natural red, Handles – natural white |
| Certified temperature | -55°C to +70°C |
| Ingress protection | IP66, IP67 |
| Voltage | 0-254Vac, 0-50Vdc |
| Weight | Gross weight – 3.2kg (4.4kg Class I, Div 1), Net weight – 2.6kg (3.8kg Class I, Div 1) |
