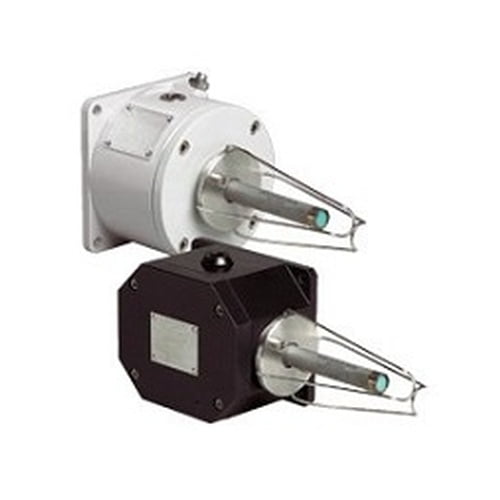

MEDC HD1 Heat Detector
The MEDC HD1 Heat Detector has been designed to be used in hazardous environments.
The MEDC HD1 Heat Detector has been designed to be used in hazardous environments. The HD1 is suitable for use in fire alarms and/or fire suppression systems.
The HD1 from MEDC can be used in offshore and onshore applications including paint spray booths, flammable material stores, turbine rooms, extract ductwork and other hazardous areas throughout the oil & gas, petrochemical and process industries.
Features
Zone 0, Zone 1 and Zone 2 use
Stainless steel probe
Marine grade alloy or GRP enclosure (model dependent)
Optional stainless steel guard.
| Option | blanking plugs, color, Enclosures, guard, Options, Series and EOL resistors, tag and duty labels, temperature setting |
|---|---|
| Material | Detector – stainless steel, Enclosures – Exd – LM25 marine grade alloy, Exia/Exem/UL – GRP (anti-static), optional guard – 316 stainless steel, Stainless steel cover screws |
| Finish | Detector Sand blasted, Enclosures Exia/Exem/UL – natural black, Ingress Protection, IP66, IP67 |
| Temperature | 60°C to 385°C/140°F to 725°F, Temperature settings |
| ATEX | -20°C to +125°C Exd (T3) ATEX/TR CU, -20°C to +55°C Exd (T6)/Ex em/UL, -55°C to +55°C Ex ia |
| Weight | Exd – 2kg, Exia/Exem/UL – 1.1kg |
| Area classification | Zone 0, Zone 1, Zone 2 |
