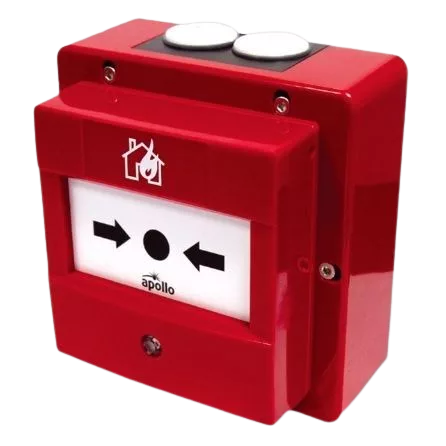

Apollo SIL Waterproof Manual Call Point – red (58200-950SIL)
The Apollo SIL Waterproof Manual Call Point – red (58200-950SIL) has been designed to operate on a loop of intelligent Fire Detection devices and when activated interrupts the polling cycle for a very fast response.
Apollo SIL Waterproof Manual Call Point – Red (Part No. 58200-950SIL)
The Apollo SIL Waterproof Manual Call Point (58200-950SIL) provides reliable manual fire alarm activation for intelligent addressable fire detection systems. Designed for operation on an addressable detection loop, the call point delivers a rapid response by interrupting the normal polling cycle when activated, making the fire alarm control panel able to receive the alarm signal almost immediately.
Engineered for outdoor installations and environments where water ingress, moisture, or high humidity may be present, the 58200-950SIL combines robust environmental protection with direct operation and maintenance. Its construction made to stand against water makes it particularly fitting for demanding industrial, marine, and outdoor applications.
The call point features a resettable operating element, allowing maintenance personnel to test and reset the device without replacing break-glass components. An ergonomic reset key and front-access reset mechanism making routine inspections and servicing simpler, while the captive screw design speeds up installation and helps prevent the loss of components during maintenance.
Key Features
- Addressable manual call point
- Waterproof construction
- Suitable for outdoor applications
- Suitable for areas with high humidity
- Resettable operating element
- Fast alarm reporting via polling interruption
- Front-access reset mechanism
- Ergonomic reset key
- Captive screw for easy installation
- Optional flashing polling LED
- Simple testing and maintenance
- Reliable operation in harsh environments
Typical Applications
The Apollo SIL Waterproof Manual Call Point provides reliable manual alarm activation in harsh and high-moisture environments.
Common applications include:
- Offshore platforms
- Marine environments
- Industrial facilities
- Outdoor installations
- Process plants
- Utility areas
- Loading facilities
- High-humidity environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Apollo SIL Waterproof Manual Call Point |
| Part Number | 58200-950SIL |
| Device Type | Addressable Manual Call Point |
| System Type | Intelligent Addressable Fire Alarm Systems |
| Alarm Activation | Resettable Operating Element |
| Communication | Polling Interruption Alarm Reporting |
| Environmental Suitability | Outdoor and High-Humidity Applications |
| Reset Method | Front-Access Reset Mechanism |
| Maintenance Tool | Ergonomic Reset Key |
| Installation Feature | Captive Screw Design |
| Status Indication | Optional Flashing Polling LED |
Installation Characteristics
| Parameter | Description |
|---|---|
| Device Type | Addressable Manual Call Point |
| Installation Environment | Outdoor, Marine and Industrial Applications |
| Alarm Operation | Resettable Element |
| Maintenance Access | Front Reset Mechanism |
| Installation Feature | Captive Screw Fixing |
| Visual Indication | Optional Flashing Polling LED |
| Typical Service | Manual Fire Alarm Activation |
