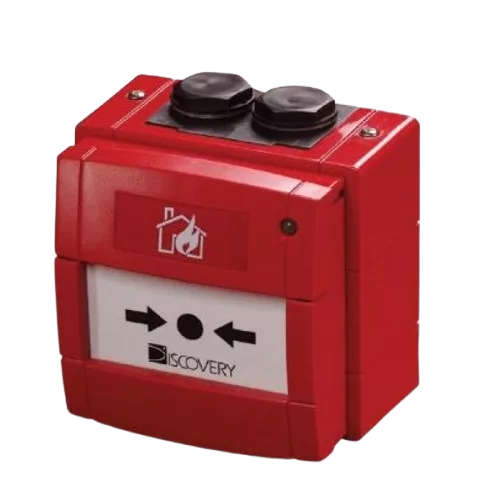

Apollo Weatherproof Manual Call Point with Isolator – red (58100-951APO)
The Apollo Weatherproof Manual Call Point with Isolator – red (58100-951APO) has been designed for use outdoors and in places where moisture can occur.
Apollo Weatherproof Manual Call Point with Isolator – Red (Part No. 58100-951APO)
The Apollo Weatherproof Manual Call Point with Isolator (58100-951APO) provides reliable manual fire alarm activation in outdoor locations and environments where moisture, water ingress, or challenging weather conditions are present. Designed for use with Apollo Discovery addressable fire alarm systems, the call point combines robust environmental protection with fast alarm reporting and integrated loop protection.
A seven-segment DIL switch allows installers to configure the device address during commissioning. When used, the call point interrupts the normal polling cycle, raising a rapid alarm response and reporting the alarm condition to the fire alarm control panel in less than 0.2 seconds.
The integrated short-circuit isolator helps maintain loop integrity by automatically isolating wiring faults, improving overall system reliability. Additionally, bi-coloured LEDs provide a clear indication of normal operating conditions and isolator status, simplifying maintenance and fault identification.
Key Features
- Addressable manual call point
- Integrated short-circuit isolator
- Designed for outdoor applications
- Suitable for damp and humid environments
- Seven-segment DIL switch addressing
- Interrupt-driven alarm reporting
- Reports alarms in under 0.2 seconds
- Bi-coloured status LEDs
- Resettable operating element
- Plug-and-play terminal connections
- Continuity link for pre-commissioning testing
- Compatible with Apollo Discovery protocol systems
Typical Applications
The 58100-951APO provides reliable manual alarm call point in outdoor and moisture-prone environments.
Common applications include:
- Outdoor installations
- Industrial facilities
- Warehouses
- Loading bays
- Utility areas
- Marine environments
- Offshore facilities
- Process plants
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Apollo Weatherproof Manual Call Point with Isolator |
| Part Number | 58100-951APO |
| Device Type | Addressable Manual Call Point |
| System Compatibility | Apollo Discovery Digital Protocol Systems |
| Application | Outdoor and Moisture-Prone Environments |
| Alarm Activation | Resettable Operating Element |
| Response Time | Less Than 0.2 Seconds |
| Addressing Method | Seven-Segment DIL Switch |
| Loop Protection | Integrated Short-Circuit Isolator |
| Status Indication | Bi-Coloured LEDs |
| Wiring Connection | Plug-and-Play Terminal Block |
| Wiring Test Feature | Continuity Link |
Installation Characteristics
| Parameter | Description |
|---|---|
| Device Type | Addressable Weatherproof Manual Call Point |
| Installation Environment | Outdoor, Industrial and Marine Applications |
| Alarm Operation | Resettable Element |
| Addressing | Seven-Segment DIL Switch |
| Loop Protection | Integrated Short-Circuit Isolator |
| Status Monitoring | Bi-Coloured LED Indicators |
| Wiring Method | Plug-and-Play Terminal Connections |
| Typical Service | Manual Fire Alarm Activation |
