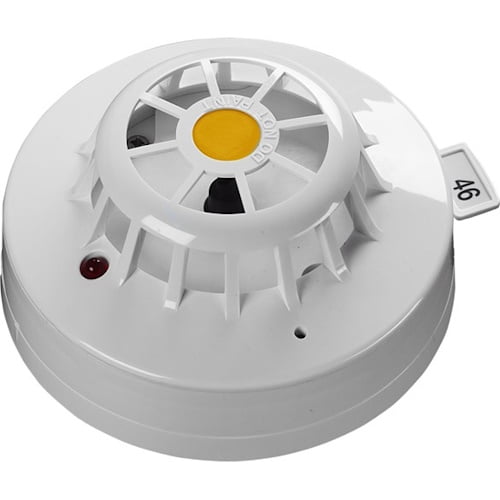

Apollo XP95 55000-400APO Heat Detector (A2S)
The Apollo XP95 55000-400APO is an addressable 55°C A2S Heat Detector.
The Apollo XP95 55000-400APO is an addressable 55°C A2S Heat Detector. The Apollo XP95 55000-400APO Heat Detector monitors the temperature using a single thermistor. The thermistor provides a count output which is proportional to the external air temperature, and reports an alarm at 55°C. It has a common profile with the XP95 optical smoke detectors, but the XP95 55000-400APO has a low air flow resistance case made of white polycarbonate.
The Apollo 55000-400APO is unaffected by wind or atmospheric pressure.
Features
Reliable fire detection in areas with a wide temperature range from -20°C to +70°C
Ideal for environments that are dirty or smoky under normal circumstances
Unaffected by wind or atmospheric pressure
| Warranty | 10 year |
|---|---|
| Applications | Cafes, Car parks/loading bays, Dusty environments, Hotels, Medium to large buildings, Offices, Restaurants, Retail, Small to medium buildings, University campuses, Warehouses |
| Fire Type | Fast burning, flaming fires |
| Heat classification | A2S |
| Analogue value nominal | 25 |
| Analogue value (- tolerance) | 2 |
| Analogue value (+ tolerance) | 2 |
| Analogue value | 25 +2/-2 |
| Color | White |
| Weight | 105g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Length | 42mm (1.65in) |
| Diameter | 100mm (3.94in) |
| Standards | EN 54-5 |
| Approvals | CPR, KRS, LPCB |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 1mA |
| Maximum power-up time | 4 seconds |
| Status indicator - Alarm | Red |
| Status indicator - Fault | Off |
| Quiescent current | 250μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Terminal functions L2 | +L2 Loop in & out positive, double terminal |
| Terminal functions L1 in | -L1 in Loop in & out, double terminal |
| Terminal functions +R | +R Remote indicator positive connection |
| Terminal functions -R | -R Remote indicator negative connection |
| Polarity | L1 & L2 are polarity insensitive |
| Battery powered | No |
| Humidity (max) | 95% RH |
| Humidity (min) | 0% RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -20 to 70°C (-4 to 158°F) |
| Operating temperature (max) | 70°C (158°F) |
| Operating temperature (min) | -20°C (-4°F) |
| IP rating Value | IP53 |
| Storage temperature (max) | 80°C |
| Storage temperature (min) | -30°C |
| Storage temperature | -30 to 80°C |
