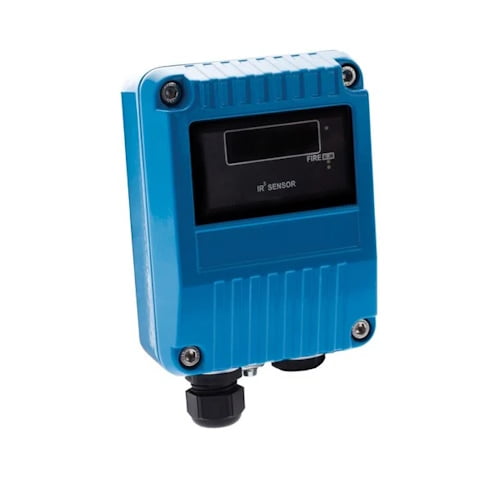

Apollo I.S. IR3 Flame Detector (55000-063APO)

The Apollo I.S. IR3 Flame Detector (55000-063APO) is designed for reliable flame detection in harsh hazardous environments, both indoors and outdoors. Using advanced triple infrared (IR3) sensing technology, the detector is highly sensitive to the low-frequency flickering infrared radiation emitted by flames during combustion, enabling rapid and dependable fire detection.

The 55000-063APO continues to operate effectively even when the sensor is obscured by layers of oil, dust, water vapour, or ice, making it suitable for demanding industrial applications. Its intrinsically safe design and international hazardous-area certifications allow installation in potentially explosive atmospheres where conventional flame detectors cannot be used.

Designed for flexibility and reliability, the detector offers multiple configurable output options, selectable response speeds, optical self-testing, and low power consumption.

Key Features

• Intrinsically Safe (I.S.) IR3 flame detector
• Triple infrared sensing technology
• Sensitive to low-frequency flickering IR radiation from flames
• Detects through oil, dust, water vapour, and ice contamination
• ATEX and IECEx certified: II 1 G
• CENELEC/IEC certified: Ga Ex ia IIC T4
• Class 1 sensitivity to EN 54-10
• Detects 0.1m² fires at distances up to 25m
• High optical interference immunity
• Selectable response speed
• Optical self-test facility
• Low power consumption
• Suitable for indoor and outdoor hazardous environments

Typical Applications

The Apollo 55000-063APO is suitable for:

• Automotive spray booths
• Automotive parts manufacturing facilities
• Factories
• Fuel storage and handling areas
• Petrochemical plants
• Power stations
• Printing facilities
• Industrial premises
• Warehouses
• Hazardous processing environments
